Removing and installing Parktronic system (PTS) switch - AR54.65-P-0005Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209 with CODE (220) Parktronic system (PTS)

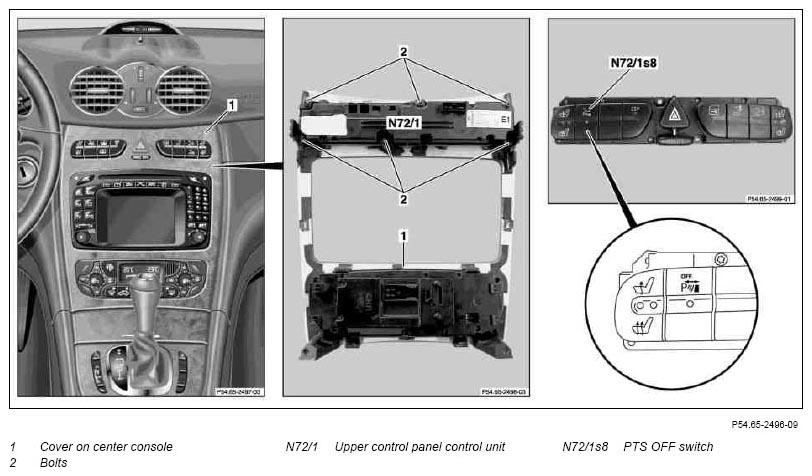

Fig 1: Identifying PTS Switch Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.1.04

Disconnect/connect/remove ground lead from battery

	Removal/installation
1.2	Remove upper control panel control unit (N72/1)	as of 1.6.04	AR54.21-P-1262Q
2.2	Remove cover for upper control panel control unit (N72/1)	as of 1.6.04 The PTS OFF switch (N72/1s8) is integrated in the upper control panel control unit (N72/1).	AR68.20-P-2313Q
3	Install in the reverse order
4	Perform basic programming		AR00.19-P-0200Q
5	Read out fault memory and erase	Faults stored due to simulations, or cables being disconnected for assembly/testing operations, must be processed and erased from the fault memories after the work is completed.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
	Connect STAR DIAGNOSIS and read out fault memory	STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
6	Perform function check

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
