Remove/install contact switch for door - AR54.25-P-2000P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209

Illustrated on model 203

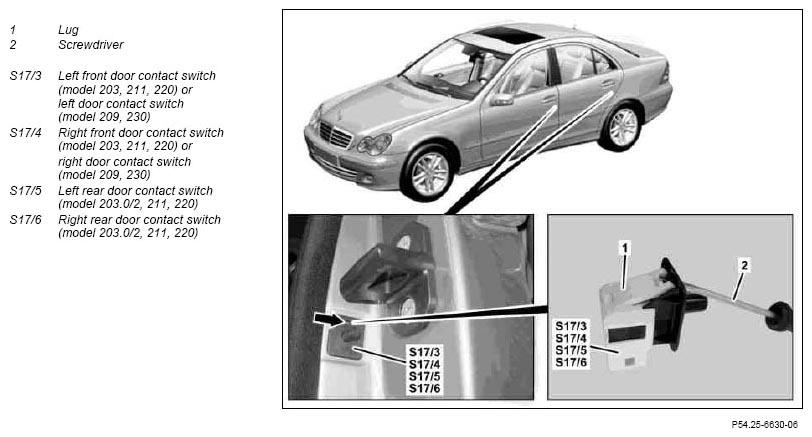

Fig 1: Identifying Door Contact Switch Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Using screwdriver (2) unlock shackle (1) through the opening on the door contact switch (S17/3, S17/4, S17/5 or S17/6) (arrow) and pull out door contact switch (S17/3, S17/4, S17/5 or S17/6) forwards until the electrical connector is accessible	When pulling out the door contact switch (S17/3, S17/4, S17/5 or S17/6) ensure that the shackle (1) on the door contact switch (S17/3, S17/4, S17/5 or S17/6) does not break off, otherwise the door contact switch (S17/3, S17/4, S17/5 or S17/6) must be replaced.
2	Disconnect electrical connector on the door contact switch (S17/3, S17/4, S17/5 or S17/6) and remove door contact switch (S17/3, S17/4, S17/5 or S17/6)
3	Install in the reverse order
