Remove/install battery - AR54.10-P-0005P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203, 209
Vehicles without code P98 Black Series
Vehicles with code P98 Black Series
| Remove/install | |||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||

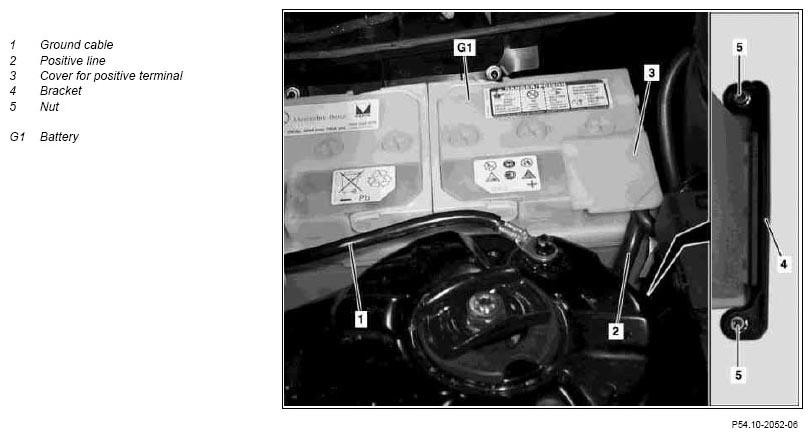

| 1 | Detach ground line (1) from battery (G1) | Model 209 | AR54.10-P-0003Q |
| 2 | Remove positive terminal cover (3) | Vehicles without code P98 Black Series | |
| 3 | Detach positive line (2) from battery (G1) | ||

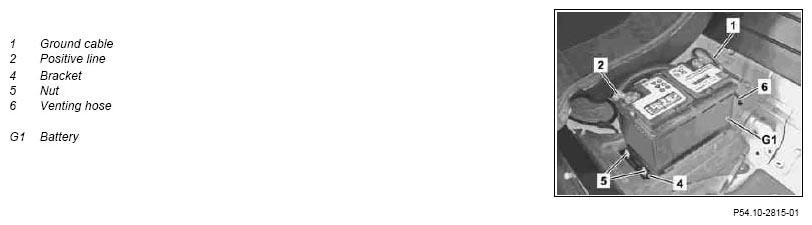

| 4 | Detach vent hose (6) from battery (G1) | Vehicles with code P98 Black Series | |
| 5 | Unscrew nuts (5). | ||
| 6 | Take out bracket (4) | ||
| 7 | Lift out battery (G1) | ↓ |
|
| Dispose of battery. | OS54.10-P-0001-01Z | ||
| 8 | Install in the reverse order |
