Remove/install Parktronic system (PTS) sensors in rear bumper - AR54.65-P-0002Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209 with CODE (220a) Parktronic System (PTS)

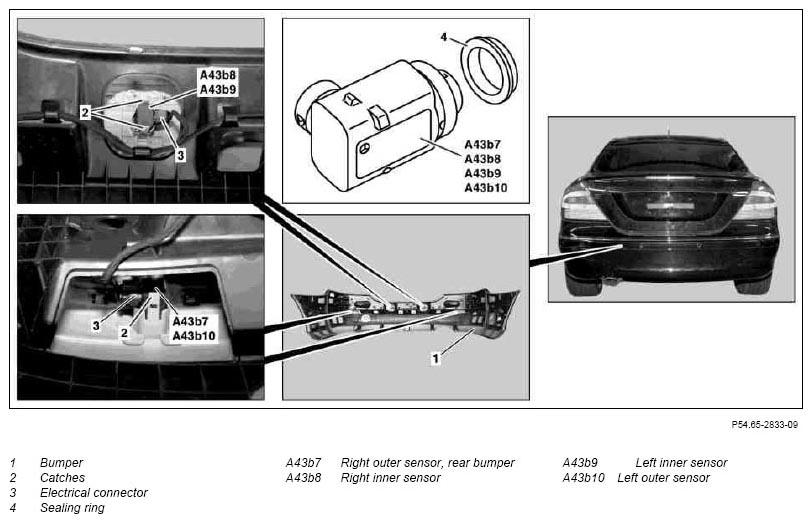

Shown on model 209.3
MODIFICATION NOTES
| 20.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
| 1 | Remove rear bumper (1) | ||
| 2 | Disconnect electrical connectors (3) | ||
| 3.1 | Release detents (2) retaining right inner sensor, rear bumper (A43b8) or left rear sensor, rear bumper (A43b9) and right inside sensor, rear bumper (A43b8) or left inside sensor, rear bumper (A43b9) | Only when removing right inside sensor, rear bumper (A43b8) or left inside sensor, rear bumper (A43b9) |
|
| Fig 2 | |||
| 4.1 | Use suitable tool to release detents (2) on right outside sensor, rear bumper (A43b7) or left outside sensor, rear bumper (A43b10) and remove right outside sensor, rear bumper (A43b7) or left outside sensor, rear bumper (A43b10) | Only during removal of right outside sensor, rear bumper (A43b7) or left outside sensor, rear bumper (A43b10). |
|
| 5 | Install in the reverse order | ||
| 6 | Perform function check |
