Fuse and relay box as-built configuration - GF54.15-P-0800Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209.356

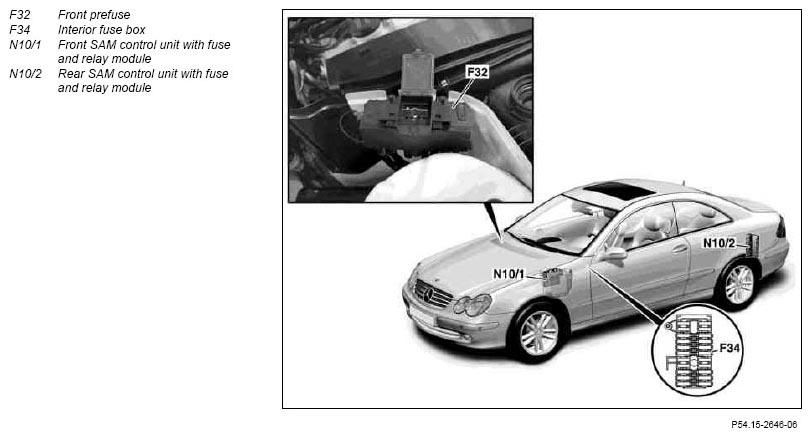

| Fuse assignment of fuse and relay box in left-hand of engine compartment | GF54.15-P-1256-03Q |
| Relay assignment of fuse and relay box in engine compartment, left | GF54.15-P-1257-03P |
| Fuse assignment of fuse box in interior compartment on driver's side | GF54.15-P-1256-04Q |
| Fuse assignment of rear fuse and relay box | GF54.15-P-1256-01Q |
| Relay assignment of rear fuse and relay box | GF54.15-P-1257-01P |
| Fuse assignment of front prefuse box | GF54.15-P-1256-07Q |
