Remove/install oil dipstick guide tube - AR18.40-P-3510QB

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.920 in MODEL 203.052/252/752

ENGINE 272.940 in MODEL 203.054/254, 209.354/454

ENGINE 272.960 in MODEL 203.056/256/756, 209.356/456

ENGINE 273 in MODEL 209

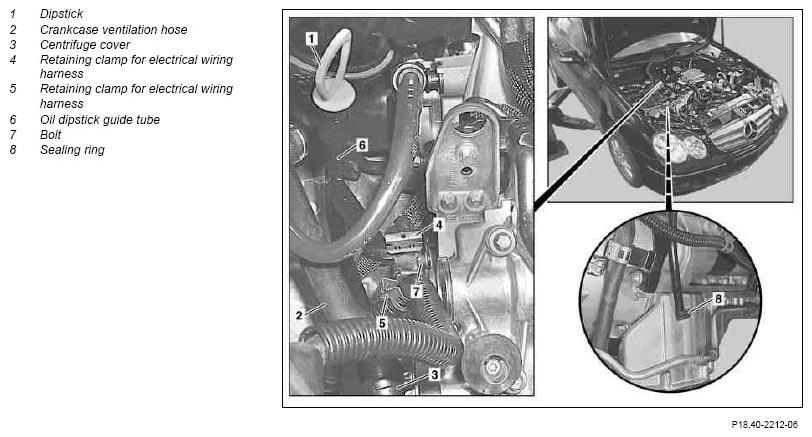

Fig 1: Identifying Oil Dipstick Guide Tube Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself.	AS00.00-Z-0005-01A
		Wear closed and snug-fitting work clothes.
		Do not grasp hot or rotating parts.
1	Open engine hood and raise to vertical position	Model 203	AR88.40-P-1000P
		Model 209
2	Raise vehicle		AR00.60-P-1000P
3	Detach lower engine compartment paneling	Installation: Install engine compartment paneling only after the engine test run.	AR61.20-P-1105P
4	Drain engine oil
	See engine oil and filter change	Model 203, 209 with engine 272	AP18.00-P-0101PIT
		Model 209 with engine 273	AP18.00-P-0101RX
5	Remove air filter housing		AR09.10-P-1150QB
6	Remove oil dipstick (1).
7	Detach hose (2) of crankcase ventilation system from centrifuge cover (3).
8	Pull the retaining clamps (4, 5) for the electrical wiring harnesses from the oil dipstick guide tube (6)
9	Remove screw (7)	Oil dipstick guide tube mounting screw	*BA01.45-P-1006-01M
10	Lift dipstick guide tube (6) up and out	Installation: Replace the sealing ring (8) of the oil dipstick guide tube (6). When fitting the oil dipstick guide tube (6), ensure the sealing ring (8) is not pressed into the oil pan.
11	Install in the reverse order
12	Check engine oil level approx. 5 minutes after switching off the warm engine, if required adjust to correct level	The vehicle must be positioned horizontally on the wheels, otherwise false measurements occur.
13	Carry out an engine test run and check the engine for leaks

OIL PAN

Number	Designation		Engine 272	Engine 273
BA01.45-P-1006-01M	Mounting screw, oil dipstick guide tube	Nm	9	9
