Bolt plan for oil pan - AR01.45-P-7500-06VA

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

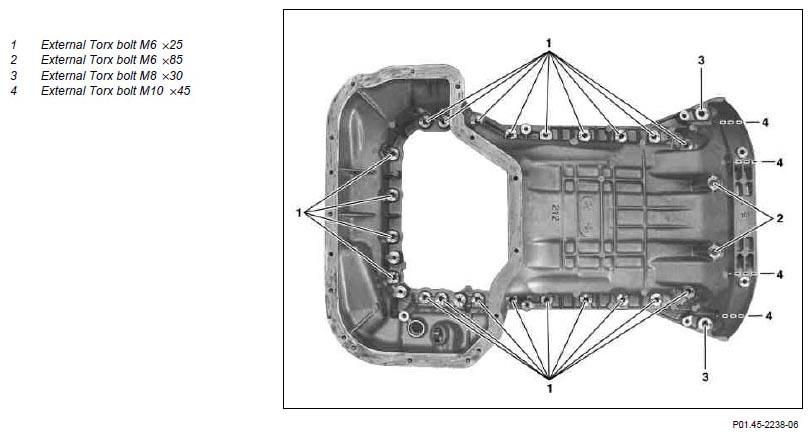

Oil pan with rear sump

Fig 1: Locating Oil Pan With Rear Sump External Torx Bolts

Courtesy of MERCEDES-BENZ USA

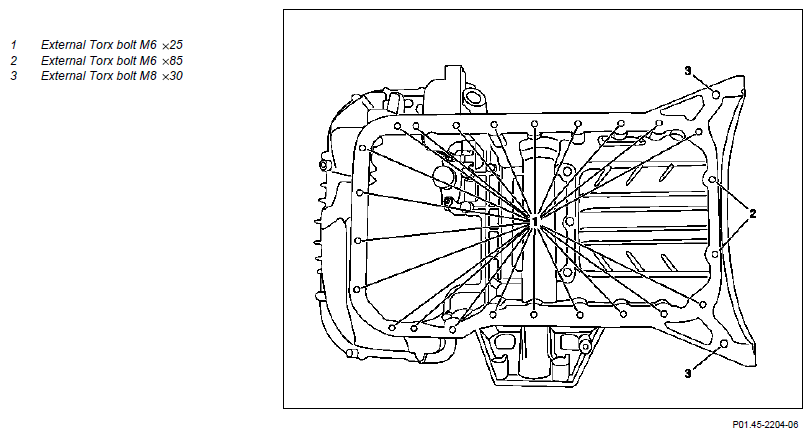

Oil pan with middle sump

Fig 2: Locating Oil Pan With Middle Sump External Torx Bolts

Courtesy of MERCEDES-BENZ USA

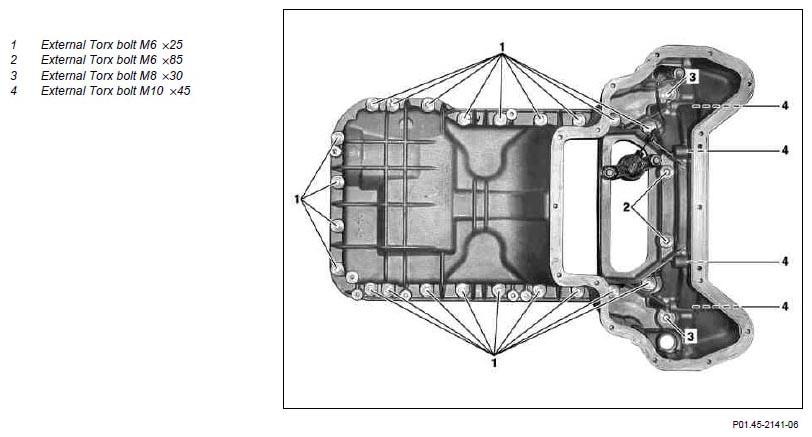

Oil pan with front sump

Fig 3: Locating Oil Pan With Front Sump External Torx Bolts

Courtesy of MERCEDES-BENZ USA
