Notes on application of sealant to oil pan - AH01.45-P-0001-01VB

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODIFICATION NOTES

28.2.06

Sealant path for adapted to specifications of the Development Department

Engine 272

Oil pan with rear sump

The lines (A) identify the sealant beads.

04 The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (0.5 mm).

The sealant must be applied within 10 min. The sealant bead must not be spread. Only the sealant listed in the Repair Products may be used.

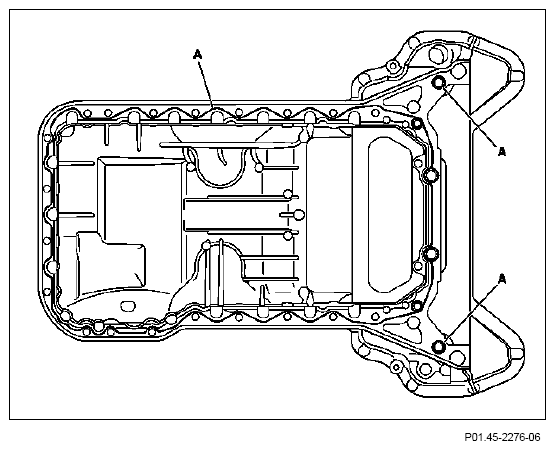

Fig 1: Identifying Sealant Beads Lines Of Oil Pan With Rear Sump

Courtesy of MERCEDES-BENZ USA

Oil pan with front sump

Fig 2: Identifying Sealant Beads Lines Of Oil Pan With Front Sump

Courtesy of MERCEDES-BENZ USA

Oil pan with middle sump

Fig 3: Identifying Sealant Beads Lines Of Oil Pan With Middle Sump

Courtesy of MERCEDES-BENZ USA
