Remove/install ESP brake pressure sensor - AR42.45-P-0816Q
MODEL 203 as of 1.8.01
MODEL 209 with CODE (472) Electronic Stability Program (ESP)
MODIFICATION NOTES
| 16.5.06 | "Disconnect/connect ground line on battery" removed |
| Remove/install | |||
| 1 | Remove dome strut | Vehicles with code P98 Black Series | AR62.30-P-2500QBS |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| 2 | Suction off brake fluid from brake fluid reservoir | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 3 | Disconnect plug from ESP brake pressure sensor (B34) | ||

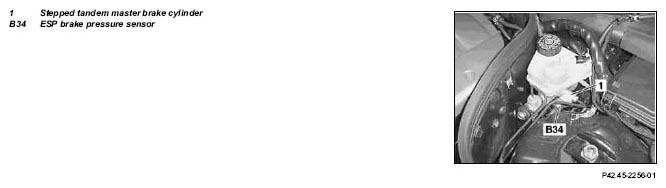

| 4 | Unscrew ESP brake pressure sensor (B34) from stepped tandem brake master cylinder (1) | ||
| *BA42.45-P-1007-01B | |||
| 5 | Install in the reverse order | ||
| 6 | Bleed brake system | AR42.10-P-0010P | |
| *BF42.10-P-1001-01A | |||
| 7 | Read out fault memory and erase |
ELECTRONIC STABILITY PROGRAM (ESP)
| Number | Designation | Model 209 | |
|---|---|---|---|
| BA42.45-P-1007-01B | Brake pressure sensor to master brake cylinder | Nm | 20 |
BRAKE FLUID
| Number | Designation | Model 209 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01A | Brake fluid | Filling capacity | Liters | ≈ 0.45...0.6 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | |||
