Retrofit hands-free system FSE 12 - AZ82.70-P-0011Q
MODEL 209.3 as of 1.6.04 with CODE (523) MB Audio 20 radio with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS (with navigation) except CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring except CODE (494) USA version except CODE (498) Japan version except retrofitted iPod kit
Illustrated on model 203
| Remove | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003Q | |||
| 2 | Remove paneling on right A-pillar | ||
| AR68.30-P-4050Q | |||
| 3 | Remove right sun visor and pivot bearing from right sun visor | ||
| 4 | Remove overhead control panel control unit | ||
| AR82.20-P-1000Q | |||
| 5.1 | Remove radio | ||
| AR82.60-P-7502QA | |||
| 5.2 | Remove radio and APS navigation control panel | ||
| AR82.61-P-7412QA | |||
| 5.3 | Remove operating / display unit with control unit | ||
| AR82.85-P-7472QA | |||
| 6 | Remove cover below instrument panel (right) | ||
| AR68.10-P-1520P | |||
| 7 | Remove front passenger footrest | ||
| 8.1 | Remove trim on right C-pillar | ||
| AR68.30-P-4490Q | |||
| 9.1 | Remove rear bumper | ||
| AR88.20-P-2200Q | |||
| Install | |||
| 10 | Retrofit hands-free system wiring harness | AZ82.70-P-0005-02PC | |
| 11 | Retrofit interface | AZ82.70-P-0001-07P | |
| 12 | Retrofit portable CTEL mount for hands-free system | ||
| 13 | Retrofit microphone for hands-free system | AZ82.70-P-0005-08P | |
| 14 | Retrofit speaker | AZ82.70-P-0001-03P | |
| 15.1 | Retrofit antenna | ||
| AN82.62-P-0001-02QQS | |||
| 16 | Install remaining parts onto vehicle | ||
| 17 | Perform version coding subsequently | AZ54.65-P-0001-08Q | |
| STAR DIAGNOSIS diagnosis system. | *WH58.30-Z-1048-13A | ||
| 18 | Carry out start-up and function test | Check telephone for proper functioning according to operating instructions. |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 57 18 | Hands-free system FSE 12 | 1 |
| B6 787 58 22 | Portable CTEL cradle for Nokia 6210, 6310, 6310i | As required |
| B6 787 58 35 | Portable CTEL cradle for Nokia 6100, 6610, 6610i, 7250i | As required |
| B6 787 58 46 | Portable CTEL cradle for Nokia 6220, 6230, 6230i | As required |
| B6 787 58 42 | Portable CTEL cradle for Nokia 6020, 6021 | As required |
| B6 787 58 47 | Portable CTEL cradle for Nokia 6820, 6822 | As required |
| B6 787 58 34 | Portable CTEL cradle for Siemens S65, SP65 | As required |
| B6 787 58 41 | Portable CTEL cradle for Siemens CX65, CXT65, CX65V, CX70, CXT70, CX70V | As required |
| B6 787 58 52 | Portable CTEL cradle for Siemens SK65 | As required |
| B6 787 58 30 | Portable CTEL cradle for Sony Ericsson T610, T630 | As required |
| B6 787 58 36 | Portable CTEL cradle for Sony Ericsson K700i | As required |

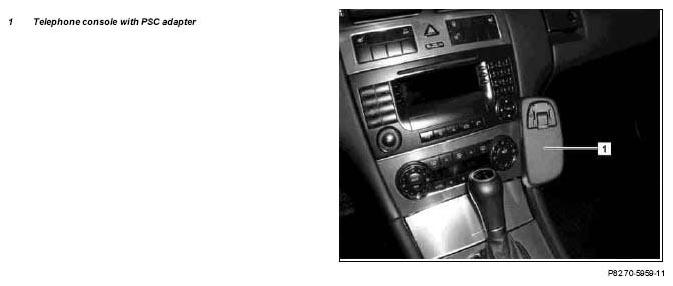

| Accessories | Telephone console with PSC adapter (actual unit ordered depends on customer request, vehicle model, and equipment color) | 1 |
| A000 994 96 45 | Clip (speaker attachment on cover) | 2 |
| Additionally in the event of customer request for a telephone antenna in the rear bumper (only models 203.0/2): | ||
| B6 788 50 10 | Antenna (telephone antenna for rear bumper) | 1 |
| A000 990 54 92 | Expansion rivet (telephone antenna attachment in rear bumper) | 4 |
| Additionally in the event of customer request for a telephone antenna in the rear bumper (only models 203.0/2) - without code 220 Parktronic system (PTS): | ||
| A140 997 54 81 | Cable grommet (for antenna line) | 1 |
