Retrofit portable CTEL mount for hands-free system - AZ82.70-P-0005-01QQS

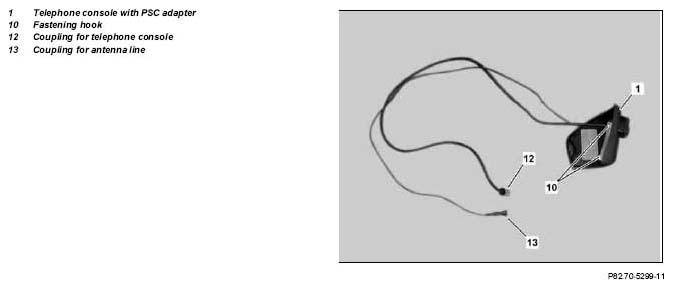

Fig 1: Identifying Fastening Hook And Telephone Console With PSC Adapter

1. Position fastening hook (10) of telephone console with PSC adapter (1) as shown to covering (14) of AAC [KLA] control and operating unit so that the cutout in the telephone console with PSC adapter (1) is located above the chrome strip on the covering (14) (see arrow).

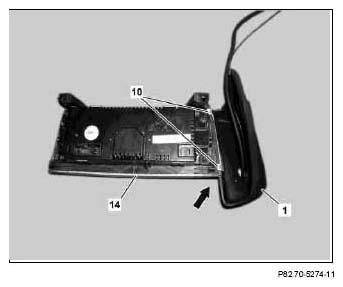

   Fig 2: Locating Fastening Hook, Covering And PSC Adapter


2. Install covering with AAC [KLA] control and operating unit and telephone console with PSC adapter (1) as shown to the center console.
3. Fasten telephone console with PSC adapter (1) as shown using the sheet metal screw (15) included in the parts scope in the separation line from the plastic to the carpet at the center console.
4. Route connecting cables (11) of telephone console with PSC adapter (1) as shown into the front passenger footwell and fasten in area of center tunnel with self-adhesive felt (see arrows).
5. Connect coupling for telephone console (12) to interface FSE11 (3) and connect antenna line coupling (13) with plug for retrofitted antenna line.
6. Fasten connecting cables (11) in the area of the vehicle's onboard wiring harnesses with the vehicle's on-board wiring harnesses so that they do not scuff or rattle.

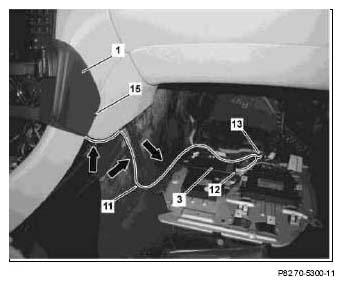

   Fig 3: Locating Connecting Cables
