Retrofit portable CTEL mount for hands-free system - AZ82.70-P-0005-01QQ

Align base bracket (2) with the console (12) as shown in the figure, mark hole pattern and drill a
3 mm dia. hole.
Screw base bracket (2) onto the console (12) with one short screw (3) and two long screws (11).

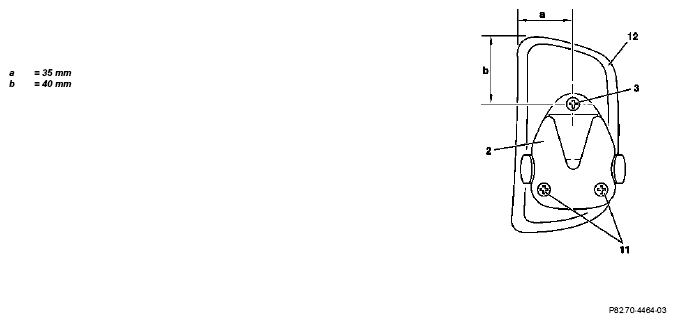

Fig 1: Aligning Base Bracket With Console
Plug portable CTEL mount (1) in base bracket (2).
Hook in connection line with one helix of the helix cable under the console (12) (arrow) and fix in position from inside with adhesive felt.

Fig 2: Locating Portable Cellular Telephone Holder And Base Holder
Route connection coupling (8) in the radio recess.

Fig 3: Identifying Connection Coupling In Radio Recess
