Retrofit control unit and interface - AZ82.70-P-0008-01QQS
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1075-02A | Terson double-sided adhesive tape For bonding trim strips and emblems (UV-resistant and weather-proof, black) (Width: 12 mm) Order no.: 107.64 A (Width: 19 mm) Order no.: 107.96 K (Width: 25 mm) Order no.: 117.05 Y |
Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Munchen Germany Tel. +49 89 9268-0 Fax + 49 89 9101978 www.Loctite.de |
Bonded surfaces must be pre-treated in accordance with adhesive tape manufacturer's instructions.
- Stick double sided adhesive tape, width 25 mm, to entire surface of rear of ICANI control unit (2) and of handsfree system interface (3).

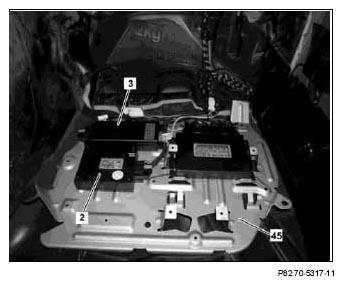

- Stick rear of ICANI control unit (2) and hands-free system interface (3) to front passenger footrest (45) as per the picture.
