Electronic stability program (ESP), location of hydraulic components - GF42.45-P-0001-02C

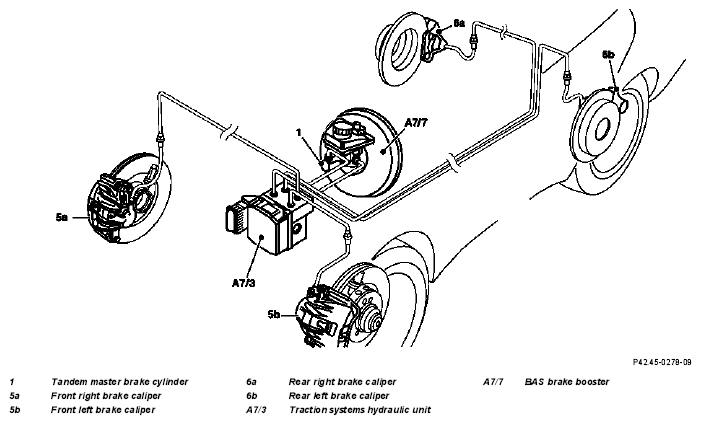

Fig 1: Identifying Electronic Stability Program (ESP) Hydraulic Components
G04635315Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
