Electronic stability program (ESP), location of electrical components - GF42.45-P-0001-03F

Models 215, 220

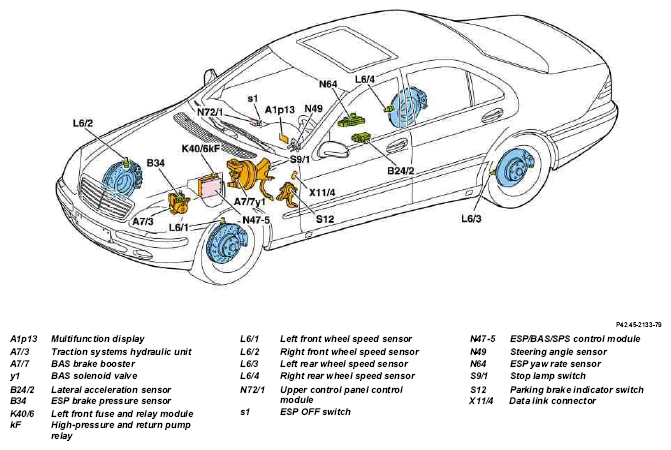

Fig 1: Identifying Electrical Components Location Of Electronic Stability Program

G04849441
