Adjust front door window - AR72.10-P-1921MB

MODEL 220.1 /8 with CODE (Z07) Top protection

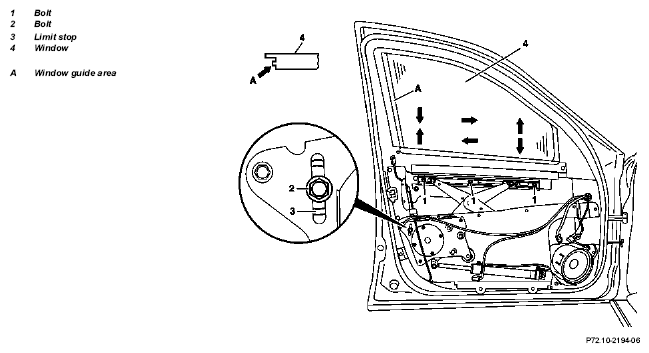

Fig 1: Identifying Front Door Window Adjusting Components (1 Of 2)

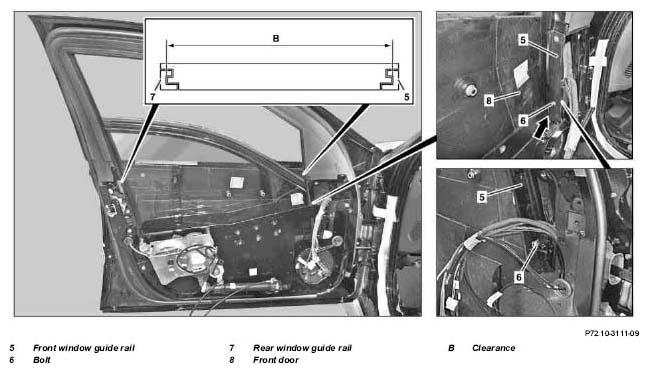

Fig 2: Identifying Front Door Window Adjusting Components (2 Of 2)

	Remove
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever  extremities.	Keep all body parts and limbs away from moving mechanical components.	AS00.00-Z-0009-01A
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
1	Remove inner door panel		AR72.10-P-0104MB
	Check
2	Connect vehicle wiring harness to door control unit installed in door lining
3	Switch on ignition
4	Carefully open or close window (4) using left front power window switch, right front power window switch and check whether textile profile rubs in area of window guide (A)	When flock coating is abraded. Loosen bolts (1) and correct adjustment of window (4) using suitable tool (arrows). If the distance in the window guide area (A) is too great, loosen bolts (1) and correct adjustment of window (4) using suitable tool (arrows).
5	Close window (4) with left front power window switch or right front power window switch to upper stop and determine distance from limit stop roller (3) to toothed quadrant	Limit stop roller (3) should: Be approx. 2 mm away from the toothed quadrant; if necessary move limit stop (3) by loosening bolt (2).
6	Open and close window (4) with left front power window switch or right front power window switch, determine distance (B) on window, check over entire length of front window guide rail (5) and rear window guide rail (7), adjust if necessary.	If the distance between the front window guide (5), rear window guide rail (7) is too great, loosen bolt (6) and adjust gap dimension (B) using shims.
			*BA72.10-P-1001-01EA
7	Check distance between front window guide rail (5) (arrow), rear window guide rail (7) and front door (8), adjust if necessary	If the distance between the front window guide rail (5) and rear window guide rail (7) is not at least 2 mm to the front door (8), adjust distance.
			*BA72.10-P-1001-01EA
8	Check distance between window (4) and all detachable parts on front door (8), adjust if necessary	Window (4) should not hit against any detachable parts.
9	Switch off ignition
10	Disconnect vehicle wiring harness from door control unit
	Install
11	Install inner door panel		AR72.10-P-0104MB

FRONT DOOR TIGHTENING TORQUE
