Remove/install Mercedes star - AR88.40-P-4050E

MODEL 202, 203.0 /2, 208.3 /4, 210, 220, 211.0 /2 /6

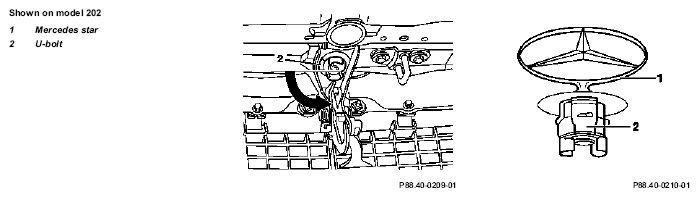

Shown on model 202

Fig 1: Identifying Mercedes Star Components - Model 202, 203.0 /2, 208.3 /4, 210, 220, 211.0 /2 /6

	Remove
1	Open engine hood	Model 202	AR88.40-P-1000E
		Model 203	AR88.40-P-1000P
		Model 208.3/4, 210	AR88.40-P-1000F
		Model 211	AR88.40-P-1000T
		Model 220	AR88.40-P-1000M
2	Turn spring bracket (2) 90° to left with assembly tool		Fig 2
3	Remove Mercedes star (1) upward from engine hood	Carefully remove Mercedes star (1). Danger of damaging paint.
	Install
4	Insert Mercedes star (1) from above into engine hood	Carefully install Mercedes star (1). Danger of damaging paint.
5	Turn spring bracket (2) 90° to right with mounting tool	Note correct installation positions.
			Fig 2
6	Close engine hood	Model 202	AR88.40-P-1000E
		Model 203	AR88.40-P-1000P
		Model 208.3/4, 210	AR88.40-P-1000F
		Model 211	AR88.40-P-1000T
		Model 220	AR88.40-P-1000M

Fig 2: Identifying Assembly Tool (202 589 11 63 00)
