TELE AID, location of components - GF82.95-P-0001-01N

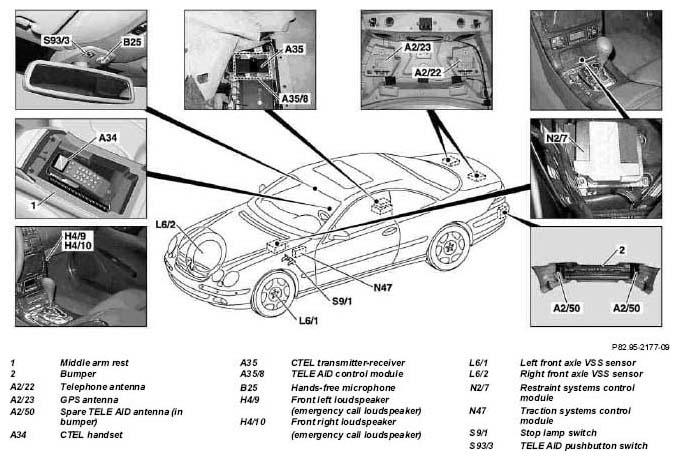

Fig 1: Identifying TELE AID Components Location

G04841115
