Electrical System -- Basic Knowledge -- 215 & 220 Chassis - 1 Of 2
>>
Basic Knowledge
>>
Headlamp range control (HRC), function - GF82.10-P-0001S
>>
Headlamp range adjustment (HRA), location of components - GF82.10-P-0001-01F
Headlamp range adjustment (HRA), location of components - GF82.10-P-0001-01F
Model 220 with code (612b) Xenon headlamp unit

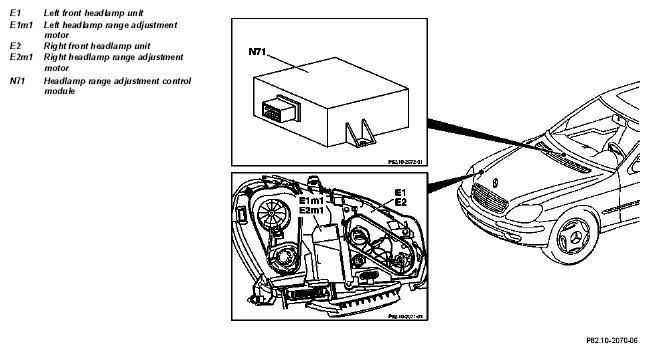

Fig 1: Identifying Headlamp Range Adjustment Location Of Components
