Electrical System -- Basic Knowledge -- 215 & 220 Chassis - 1 Of 2
>>
Basic Knowledge
>>
Headlamp cleaning system (HCS), function - GF82.15-P-0002S
>>
Headlamp cleaning system (HCS), interlinkage of components - GF82.15-P-0002-04S
Headlamp cleaning system (HCS), interlinkage of components - GF82.15-P-0002-04S
Interlinkagae of components

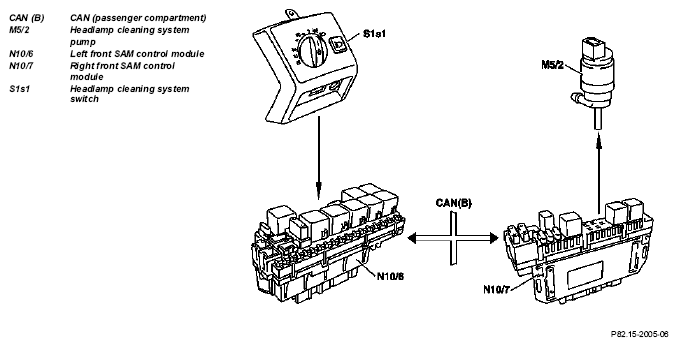

Fig 1: Headlamp Cleaning System Components Interlinkage Chart
