GPS/telephone roof antenna, location/task/design/function - GF82.70-P-4111A: Notes
MODELS 140, 210 up to 31.5.98 with CODE (348) TELE AID emergency call system
MODELS 129, 202, 208.3, 210 as of 6/198, 220 with CODE (347) TELE AID emergency call system (D2B)
MODEL 140 as of 1.1.98, 168, 202, 208.3, 210.0 as of 1.1.98, 210.2 with CODE (351) Auto pilot system (APS)
MODELS 163,168, 208.3, 210 with CODE (353) Audio 30 APS
MODELS 163, 208.3, 210, 220 with CODE (352a) COMAND operating and display system with CODE (353) Audio 30 APS with CODE (853) MB standard CTEL telephone with CODE (854) MB portable CTEL telephone with CODE (855) TELE AID
MODEL 163 with CODE (522) Modular control system (MCS) Radio USA

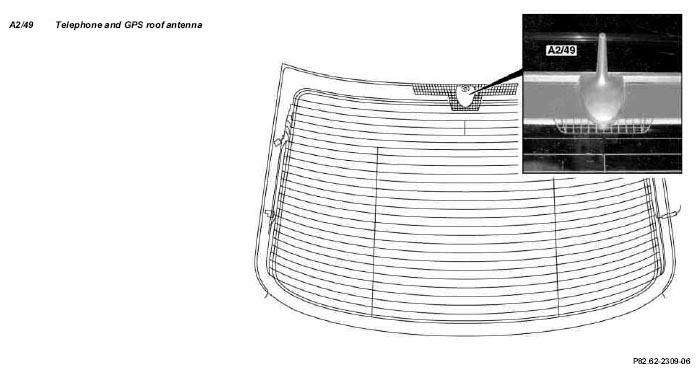

Location shown on model 210
The telephone antenna (A2/49a1) and the GPS antenna (A2/49a2) are integrated in an antenna housing.
| GPS/telephone roof antenna, location | Models 129, 140, 168, 202, 208.3, 210 | GF82.70-P-4111-01A | |
| Model 220 | GF82.70-P-4111-01B | ||
| Model 163 | GF82.70-P-4111-01GH | ||
| GPS/telephone roof antenna, purpose | Receiving and amplifying the global positioning system (GPS) satellite signals as well as transmitting and receiving the mobile radio signals (GSM 900 MHz). | ||
| GPS/telephone roof antenna, design | The GPS/telephone roof antenna (A2/49) consists of two components:
|
||
| Model 163 as of 01.09.01 | GF82.70-P-4111-03GH | ||
| GPS/CTEL roof antenna, function | Code 351 or code 353, except models 129 /163 /220 | GF82.70-P-4111-04A | |
| Code 353 for model 163 | GF82.70-P-4111-04D | ||
| Code 347 or 348 or 352 except models 168/163 | GF82.70-P-4111-04B | ||
| Model 163 as of 01.09.01 | GF82.70-P-4111-04GH |
