Panic alarm system (PAS) function - GF82.25-P-0005MB

MODEL 220.175 with CODE (979) Special protected version with panic alarm system (PAS)

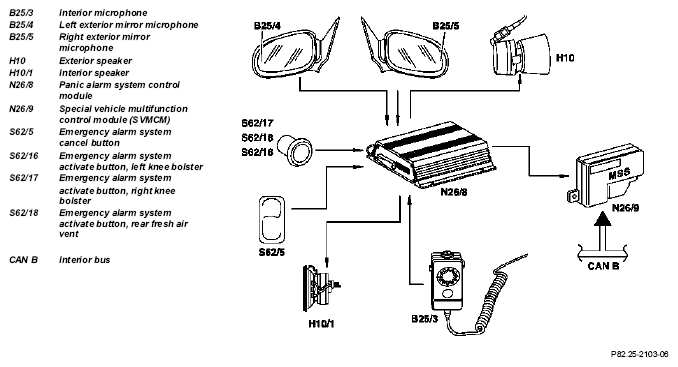

Fig 1: Panic Alarm System Function Diagram

The following functions are made possible by the panic alarm system (PAS)  :

• Audible alarm signals (through exterior speaker)

• Visual alarm signals (flashing of headlights or foglights and turn signal lights)
• Automatic locking of central locking system
• Transmitting emergency call (option)
• Electronic voice link interior/exterior (irrespective of activation of alarm)

The link to the standard vehicle electrical system and the actuation of the system components is implemented by the special vehicle multifunction control module (SVMCM) through the interior bus (CAN B).

As a result of the modular design, the panic alarm system (PAS) can be expanded to include the functions of the special signal system.
