Remove/install spare wheel recess - AR88.30-P-1000PP

MODEL 203 except CODE (550) Trailer hitch

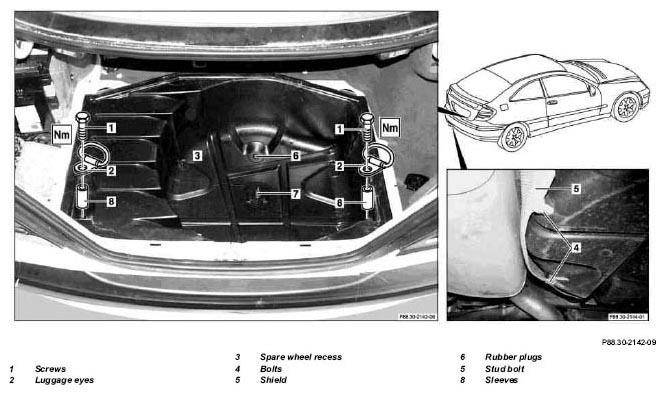

Fig 1: Identifying Spare Wheel Recess Remove/Install Components

	Remove
1	Prepare glue cartridge		AR67.10-P-1000-07P
		Repair kit	*BR00.45-Z-1049-02A
2.1	Remove trim in trunk	Model 203.0 Right paneling can remain in vehicle.	AR68.30-P-4600P
		Model 203.7	AR68.30-P-4600PB
2.2	Remove right side trim panel in rear	Model 203.2 Left and right side	AR68.30-P-4780PA
3	Remove cargo edge cover	Model 203.2 See ↓
		Remove/install paneling on D-pillar	AR68.30-P-4495PA
4	Unscrew screws (1)	Simultaneously remove luggage eyes (2), if present.
5	Remove substructure for front load compartment floor	Model 203.7 Loosen only and position vertically.	AR68.20-P-4820PA
6	Remove warning triangle from spare wheel recess (3)	Except for Model 203.2
7.1	Remove spare wheel
7.2	Remove tool holder	Except for Model 203.2
8	Unscrew screws (4) from shield (5)
9	Remove rubber plug (6)
10	Remove stud bolt (7)
	Risk of injury  from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A
11	Cut out spare wheel recess (3)	Model 203.0/203.2	AR88.30-P-1000-01P
		Model 203.7	AR88.30-P-1000-01PB
		Multicutter	*WH58.30-Z-1003-20A
		Saw blade ø 63 mm (package of 2)	*WH58.30-Z-1005-34A
		Screw (only required for multicutter)	*WH58.30-Z-1006-34A
		Cutting blade	Figure
12	Remove sleeves (8)
	Install
13	Prepare body flange for installation of window		AR67.10-P-1501-01P
14	Install sleeves (8) in new spare wheel recess (3)
15	Clean glue flange on spare wheel recess (3) with cleaning rag from cleaning set	Dry with drying cloth.
16	Apply plastic primer to glue flange of spare wheel recess (3)	Allow primer to air-dry for at least 10 minutes.
17	Apply glue	To glue flange of spare wheel recess (3). Height of glue bead approx. 13 mm.	AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
18	Insert spare wheel recess (3) into body opening.
19	Center spare wheel recess (3) and press on by slightly knocking with plastic hammer all the way around.	Curing time is approx. 1 hour, measured from the time the spare wheel recess is inserted.
20	Install stud bolt (7)
21	Install rubber plug (6)
22	Screw screws (4) into shield (5)
23.1	Install tool holder	Except for Model 203.2
23.2	Install spare wheel
24	Insert warning triangle into spare wheel recess (3)	Except for Model 203.2
25	Install substructure for front load compartment floor	Model 203.7	AR68.20-P-4820PA
26	Seal sleeves (6) against water ingress
27	Screw in screws (1)	Simultaneously install luggage eyes (2), if present.
		Nut/screw for rear bumper on longitudinal member	*BA88.20-P-1010-01A
28	Install load edge cover	Model 203.2 See ↓
		Remove/install paneling on D-pillar	AR68.30-P-4495PA
29.1	Install paneling in trunk	Model 203.0 Right paneling can remain in vehicle.	AR68.30-P-4600P
		Model 203.7	AR68.30-P-4600PB
29.2	Install side paneling in rear	Model203.7 Left and right side	AR68.30-P-4780PA

BUMPER

Number	Designation		Model 203
BA88.20-P-1010-01A	Nut/screw for rear bumper on longitudinal member	Nm	45

Fig 2: Identifying Cutting Blade (124 589 21 63 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-20A	Electric cartridge gun
WH58.30-Z-1003-20A	Multicutter
WH58.30-Z-1005-34A	Saw blade, dia. 63 mm (pack of 2)
WH58.30-Z-1006-34A	Screw (only required for multicutter)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1049-02A	Repair kit	A 168 670 00 93
