| 1 |
Loosen paneling on left in trunk |
|
AR68.30-P-4600PB |
| 2.1 |
Loosen paneling on right in trunk |
Except code (810) Sound system |
AR68.30-P-4600PB |
| 2.2 |
Remove resonance element |
With code (810) Sound system |
AR82.62-P-7839PB |
| 3.1 |

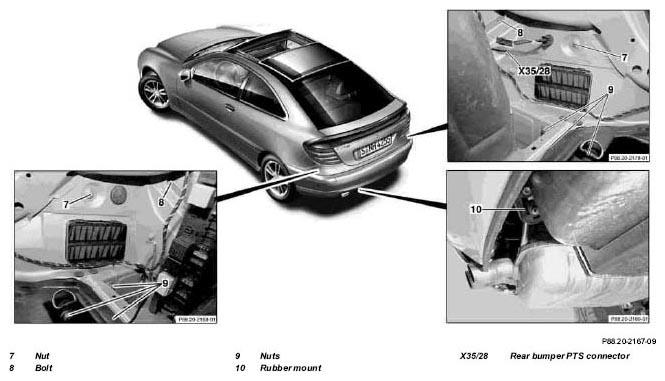

Disconnect PTS connector, rear bumper (X35/28) |
With code (220) Parktronik system |
|
| 4 |
Unscrew screws (8) on both sides |
|
|
| 5 |
Unscrew nut (7) on both sides |
|
|
| 6 |
Remove left vapor seal |
|
|
| 7 |

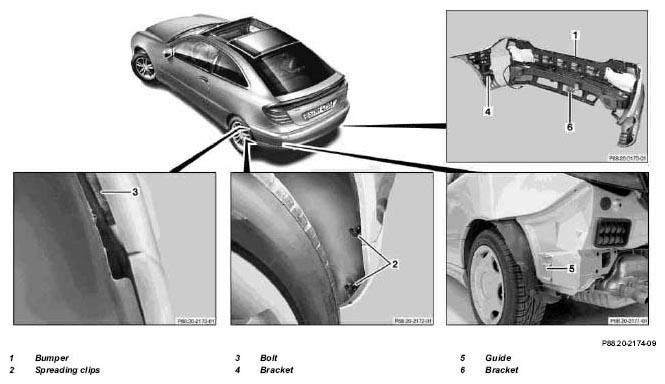

Remove spreading clips (2) on both sides of rear inner fender |
|
|
| 8 |
Unscrew screws (3) on both sides |
|
|
| 9 |
Leave rubber mount (10) at mount (6) and loosen from muffler |
Check rubber mount (10) before installation, replace if necessary. |
|
| 10.1 |

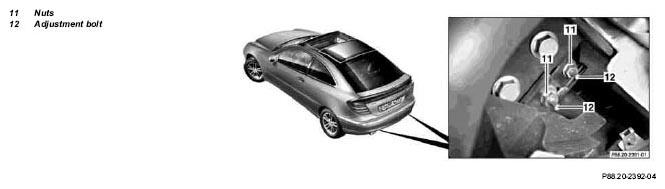

Loosen nut (11) on both sides on adjustment bolts (12) |
With code (550) Trailer coupling |
|
| 10.2 |
Unscrew nuts (9) on both sides |
except CODE (550) Trailer coupling |
|
| 11 |
Remove bumper (1) |
|
|
 |
Install |
|
|
| 12 |
Install bumper (1) |
When moving in, ensure that mount (4) is pushed into guide (5) on both sides. |
|
| 13.1 |
Install nuts (9) and tighten. |
Except CODE (550) Trailer device |
|
| |
|
Nut for rear bumper on rear center section
Move bumper until the edge of the bumper (1) is flush with the edge of the rear fender. Check bumper gap dimensions (1), correct if necessary Refer to:↓ |
*BA88.20-P-1002-01A |
| |
|
Gaps on hoods, doors and lids |
AR60.00-P-0700-01PB |
| |
|
 |
Figure |
| 13.2 |
Place nuts (11) at the adjusting bolts (12) and tighten |
With code (550) Trailer coupling
Place nuts (11) only up to the point, that it remains possible to twist the adjustment bolts (12). Adjust uniform gap on bumper (1) with adjustment bolts (12).
Move bumper until the edge of the bumper (1) is flush with the edge of the rear fender. Check bumper gap dimensions (1), correct if necessary Refer to:↓ |
|
| |
|
Gaps on hoods, doors and lids |
AR60.00-P-0700-01PB |
| |
|
|
Figure |
| 14 |
Mount rubber mount (10) at muffler |
|
|
| 15 |
Screw in bolt (3) on both sides |
|
|
| 16 |
Install spreading clips (2) on both sides on rear inner fender |
|
|
| 17 |
Install vapor barrier on left side |
|
|
| 18 |
Screw in nuts (7) on both sides |
|
|
| 19 |
Screw in bolt (8) on both sides |
Screw with washer for rear bumper on fender |
*BA88.20-P-1005-01A |
| 20.1 |
Connect rear bumper PTS connector (X35/28) |
With code (220) Parktronik system |
|
| 21.1 |
Install resonance element |
With code (810) Sound system |
AR82.62-P-7839PB |
| 21.2 |
Install paneling on right side of trunk |
Except code (810) Sound system |
AR68.30-P-4600PB |
| 22 |
Install paneling on left side of trunk |
|
AR68.30-P-4600PB |
