Removing and installing side air nozzle - AR68.10-P-1100P

MODEL 203

Illustrated on model 203.0

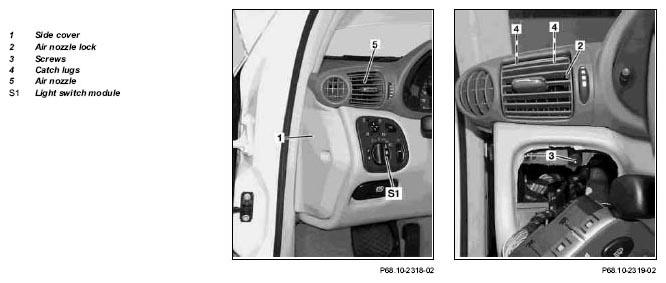

Fig 1: Identifying Side Air Nozzle Remove/Install Components

	Removing, installing
1	Remove side cover (1)
2	Remove light switch module (S1)	Left air nozzle	AR54.25-P-3270P
3	Unscrew screws (3) from air nozzle	Left air nozzle
		Torx bit set	Figure
4	Unscrew screws from instrument panel bottom section on driver's side	Left air nozzle
5	Slightly fold instrument panel bottom section down on driver's side	Left air nozzle
6	Unscrew screws from glove compartment	Right air nozzle
		Torx bit set	Figure
7	Fold down glove compartment	Right air nozzle
8	Unscrew screws from air nozzle	Right air nozzle
9	Loosen air nozzle lock (2) and turn downwards
10	Press catch lugs (4) in air nozzle duct downward and remove air nozzle
11	Remove air ducts and remove air nozzle (5)	Installation:  Install sealing felt to fit
12	Install in the reverse order

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
