Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
| 1 |
Detach twelve-point nut (40) of rear axle shaft |
See: ↓ |
|
| |
|
Detach, attach and secure twelve-point nut of rear axle shaft. |
AR35.30-P-0115-01A |
| |
|
 |
*BA35.30-P-1001-01A |
| 2 |
Remove wheel. |
|
|
 |
Remove/install wheels, rotate if necessary |
|
AP40.10-P-4050Z |
| 3 |
Remove brake disc (61) |
|
AR42.10-P-0220P |
| 4 |
Remove brake shoes of parking brake (103) |
|
AR42.20-P-0530A |
| 5 |
Remove link rod (6k) of stabilizer bar |
|
|
| 6 |
Detach brake cable from wheel carrier (7) |
|
*BA42.20-P-1002-01A |
| 7 |
Detach left rear rpm sensor (L6/3) from wheel carrier (7) |
|
*BA42.30-P-1001-02A |
| 8 |
Detach camber strut (2) from wheel carrier (7). |
 Installation:
Position camber strut (2) on wheel carrier (7) first. |
|
| |
|
|
*BA35.20-P-1002-02A |
| |
|
Retainer wrench |

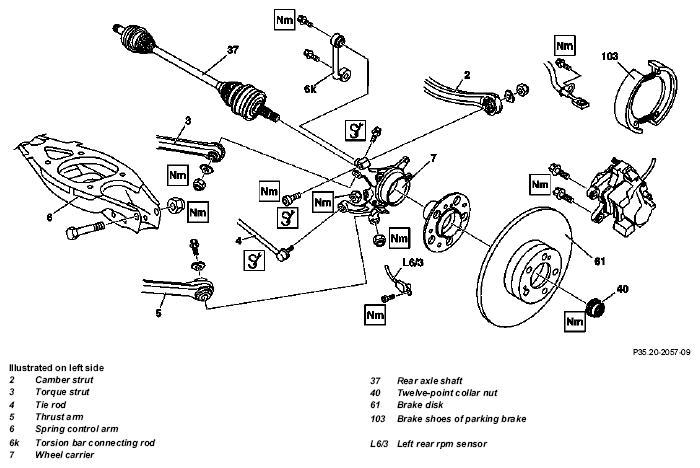

Figure |
| 9 |
Remove torque strut (3) from wheel carrier (7) |
|
*BA35.20-P-1002-03A |
| |
|
Retainer wrench |
Figure |
| 10 |
Remove thrust arm (5) from wheel carrier (7) |
|
*BA35.20-P-1002-05A |
| 11 |
Detach tie rod (4) from wheel carrier (7) |
|
*BA35.20-P-1002-04A |
| 12 |
Press rear axle shaft (37) out of the wheel carrier (7) |
Do not damage exciter ring for rpm sensor or sleeve.
If the rear axle shaft (37) is difficult to remove: ↓ |
|
| |
|
Press rear axle shaft out of the wheel carrier. |
AR35.30-P-0115-03B |
| 13 |
Unscrew bolt of spring control arm (6) on wheel carrier (7) |
|
*BA35.20-P-1002-01A |
| 14 |
Pull wheel carrier (7) upwards out of the spring control arm (6) |
Installation:
Do not damage the supporting joint boot when moving in the wheel carrier (7). |
|
| 15 |
Install in the reverse order |
|
|
| 16 |
Adjust parking brake |
|
AR42.20-P-0540A |
