Remove/install double-row angular ball bearing in wheel carrier - AR35.20-P-0130-03A

Fig 1: Identifying Extraction And Installation Tool (140 589 08 43 00)

Fig 2: Identifying Extraction And Installation Tool (124 589 05 43 00)

Special tool assignment:

Model 140, 163, 215, 220:

Extraction and installation tool 140 589 08 43 00

Model 129, 170, 202, 203, 208, 209, 210:

Extraction and installation tool 124 589 05 43 00

Pull out angular contact ball bearing

Pull double-row angular ball bearing (8) out of wheel carrier (7) using extraction and insertion tool and remove.

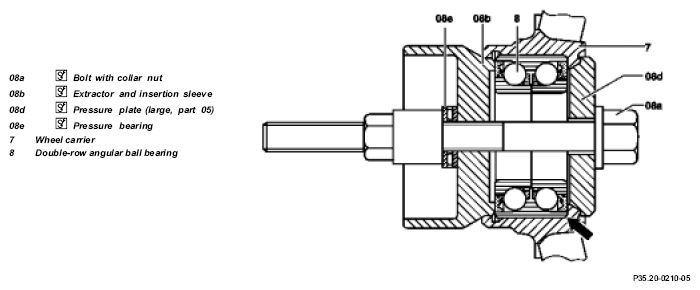

Fig 3: Identifying Thrust Pin, Support Plate, Pressure Plate, Wheel Carrier, Rear Axle Shaft Flange (Model 210)

Pull in angular contact ball bearing

Pull double-row angular ball bearing (8) into wheel carrier (7) using extractor and insertion tool until it touches the shoulder (arrow).

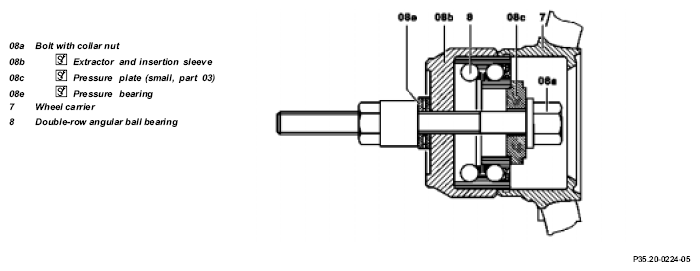

Fig 4: Identifying Thrust Pin, Support Plate, Pressure Plate, Wheel Carrier, Rear Axle Shaft Flange (Model 163)
