Pulling jammed rear axle shaft flange out and in (wheel carrier removed) - AR35.20-P-0130-04GH

Special tool assignment:

Model 129, 140, 163, 170, 202, 203, 208, 209, 210, 215, 220:

Extraction tool 202 589 04 43 00

Model 140, 163, 215, 220:

Extraction and installation tool 140 589 08 43 00

Model 129, 170, 202, 203, 208, 209, 210:

Extraction and installation tool 124 589 05 43 00

Press out jammed rear axle shaft flange

1. Press out rear axle shaft flange (10)using extraction tool parts and a suitable drift (010x)on a stationary hydraulic press.

   The diameter of the drift (01 0x) must be approx. 2 mm smaller than the rear axle shaft flange diameter (see detail).

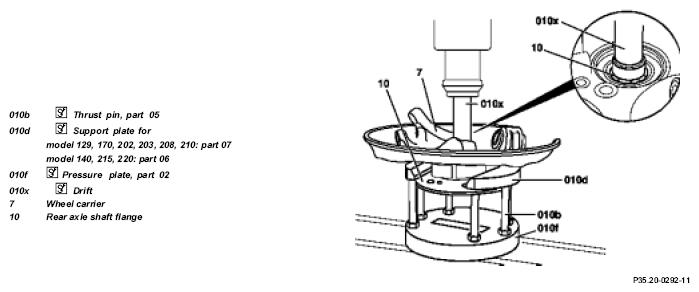

   Illustrated on model 210

   Fig 4: Pressing Out Jammed Rear Axle Shaft Flange (Model 210)

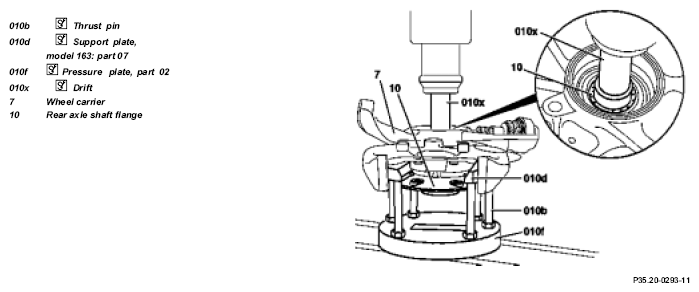

   Shows model 163

   Fig 5: Pressing Out Jammed Rear Axle Shaft Flange (Model 163)

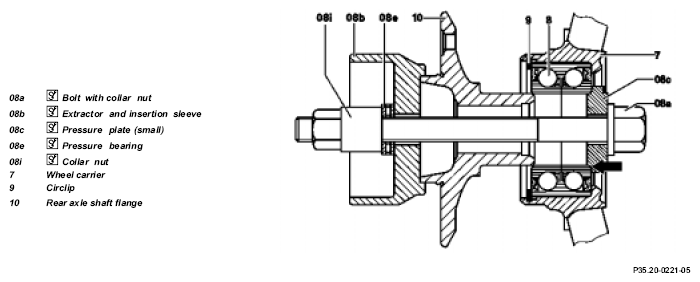

Pull in rear-axle shaft flange

2. Pull rear axle shaft flange (10) into double-row angular ball bearing (8) using insertion tool.

   Ensure that the pressure plate (small), part 03, abuts the bearing inner race snugly when pulling in (arrow).
