Pressing protection ring off and on rear axle shaft or connecting flange - AR35.30-P-0620-05R

Fig 1: Identifying Drift (140 589 16 15 00)
G04636290
Fig 2: Identifying Drift (211 589 03 15 00)
G04636291

    Pushing off

  1. Using a suitable screwdriver, pry protection ring (33k) off the connecting flange (33) or rear axle shaft (arrow).

    Shown on vehicles with connecting flange

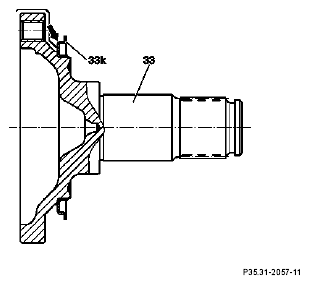

    Fig 3: Identifying Protection Ring, Connecting Flange And Rear Axle Shaft
    G04636292

    2. Pressing on

  2. Press protective ring (33k) onto rear axle shaft (33) using SPECIAL TOOL drift (045).

    IMPORTANT On rear axle differential ø 187 mm, 198 mm, 200 mm, 210 mm SPECIAL TOOL use drift (045, 140 589 16 15 00).

    On rear axle differential ø 215 mm SPECIAL TOOL use drift (045, 211 589 03 15 00).

    Shown on vehicles with connecting flange

    Fig 4: Pressing Protective Ring Onto Rear Axle Shaft Using Drift
    G04636293
