Remove/install airbag/belt tensioner control unit - AR91.60-P-0622P

MODEL 203

Shown on model 203.0

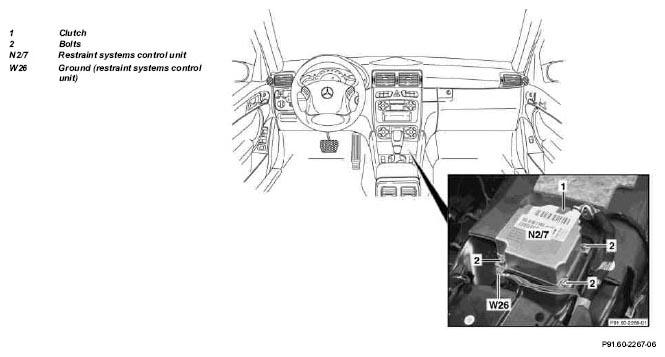

Fig 1: Identifying Ground Restraint Systems Control Unit, Restraint Systems Control Unit And Clutch - Shown On Model 203.0

MODIFICATION NOTES

16.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units	Models 203, 215, 220	AH91.00-P-0002-01M
	The restraint systems control unit (N2/7) must be replaced after three airbag deployments
1	Remove transmitter key
2	Remove center console		AR68.20-P-2000P
3	Remove cover on center console		AR68.20-P-2350P
4	Release connector (1) and disconnect
5	Unscrew bolt (2)	Installation:  Pay attention of attachment of ground (restraint systems control unit) (W26).
6	Remove restraint systems control unit (N2/7)	Installation:  Arrow on housing must point in direction of travel.
7	Install in the reverse order	Store parameters on new restraint systems control unit (N2/7) and program, read out diagnostic trouble code memory:↓
	Connect STAR diagnosis tool, read out diagnostic trouble code memory and erase		AD00.00-P-2000-04A
