Self-Diagnostic System
>>
Hot film mass air flow sensor, ME-SFI fuel injection system electrical testing - AD07.61-P-6000-04D
Hot film mass air flow sensor, ME-SFI fuel injection system electrical testing - AD07.61-P-6000-04D

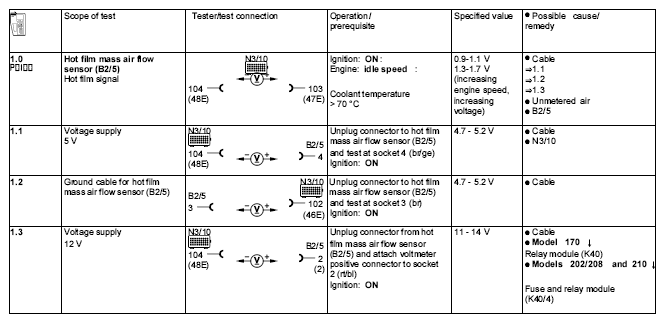

Fig 1: Hot Film Mass Air Flow Sensor, ME-SFI Fuel Injection System Electrical Testing
