Cruise control push-button switch - Check electronics - ME-SFI cruise control without variable speed limiter - AD07.61-P-6004-01A

111.921/942 up to 31.8.98,

111.943,

111.944/946/947 up to 31.5.98,

111.973 up to 31.5.97,

111.945 up to 31.8.98

111.974 USA ONLY

with CODE (807) model year 1997

with CODE (808) model year 1998

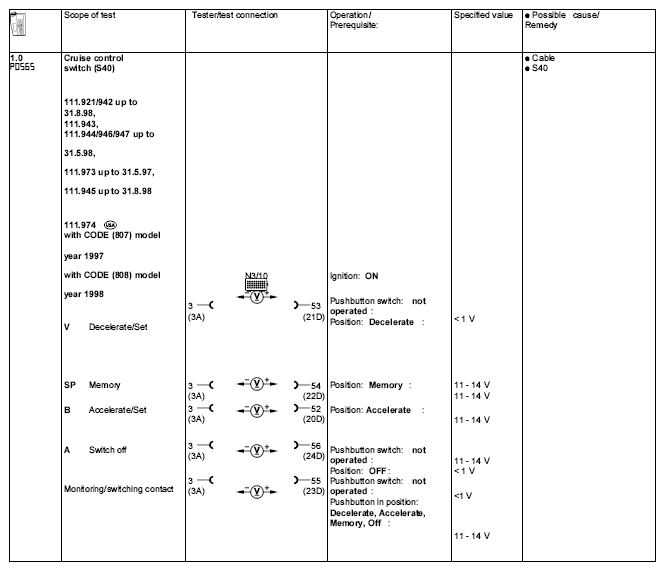

Fig 1: Cruise Control Push-button Switch - Check Electronics - ME-SFI Cruise Control Without Variable Speed Limiter
G04736995
