Risk of poisoning
caused by swallowing brake fluid. Risk of injury
caused by brake fluid coming into contact with skin and eyes. |
Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. |
AS42.50-Z-0001-01A |
FIXED CALIPER AT REAR
| Number |
Designation |
Model 203 except model 203.076/276 |
Model 203.076/276 Models 209.376/476 up to 23.4.04 (2-piston fixed brake caliper) |
Model 209.376/476 as of 24.4.04 Model 209.377/477 (4-piston fixed brake caliper) |
| BA42.10-P-1002-01A |
Bleed screw on rear axle fixed brake caliper |
Nm |
7 |
7 |
7 |
FIXED CALIPER AT REAR
| Number |
Designation |
Model 209 except 209.376/377/476/477 |
| BA42.10-P-1002-01A |
Bleed screw on rear axle fixed brake caliper |
Nm |
7 |
FRONT AXLE FLOATING CALIPER
| Number |
Designation |
Models 203 except 203.018/065/076/218/265/276/718 |
| BA42.10-P-1002-03A |
Bleed screw at front axle floating caliper |
Nm |
7 |
FRONT AXLE FLOATING CALIPER
| Number |
Designation |
Model 209 |
| BA42.10-P-1002-03A |
Bleed screw at front axle floating caliper |
Nm |
7 |
FRONT AXLE FIXED BRAKE CALIPER
| Number |
Designation |
Model 203.018/065/076/087/092/218/265/276/287/292/718, Model 203 with code 949/950 |
Model 209.372/375/376/377/472/475/476/477 |
| BA42.10-P-1002-02A |
Bleed screw at front axle fixed brake caliper |
Nm |
7 |
7 |

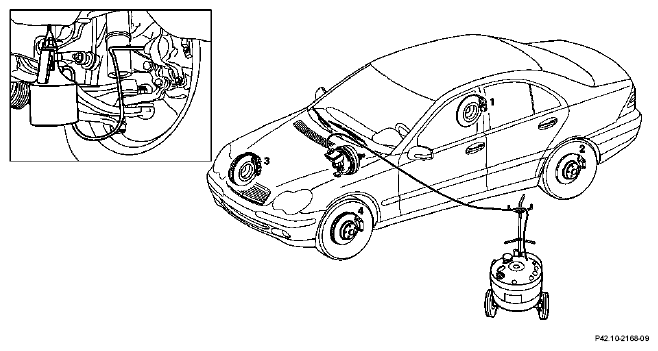

Shown on model 203
- Open bleed screw at brake caliper (1), allow approx. 80 cm 3
of brake fluid to flow out free of bubbles, bleeding pressure 2 bar.
- Repeat bleeding operation at brake calipers 2, 3, 4, allowing 80 cm 3
of brake fluid to flow out free of bubbles at each brake caliper.
- Close bleed screw.
