Machining trunk lid lock - AZ88.50-P-0003-01P

Turn selector drum (10) on trunk lid handle (8) clockwise to stop.

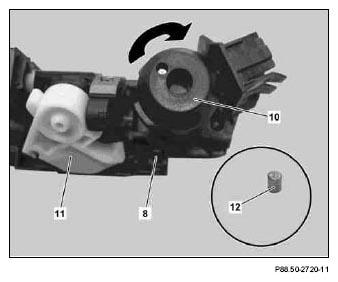

Fig 1: Identifying Selector Drum, Bracket And Trunk Lid Handle
Actuate trunk lid handle (8) (open) and turn selector drum (10) clockwise to stop.
When removing selector drum (10), a pin (12) located below the selector drum (10) can fall out (see magnified section). Bracket (11) turns clockwise.
Remove selector drum (10) upward from trunk lid handle (8).

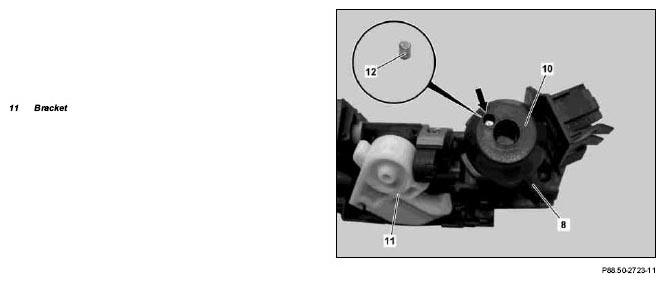

Fig 2: Identifying Selector Drum, Pin, Bracket And Trunk Lid Handle
Carefully separate arrest (see arrow) on selector drum (10) using side cutters so that it is flush with the edge.
Do not damage selector drum (10) when working with side cutter.
Carefully remove edge on selector drum (10) with file.
Do not damage selector drum (10) when working with file.

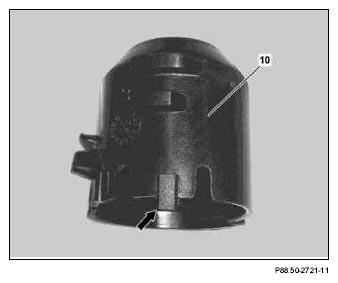

Fig 3: Identifying Selector Drum
Insert pin (12) into mount (13) on trunk lid handle (8) as shown in illustration.

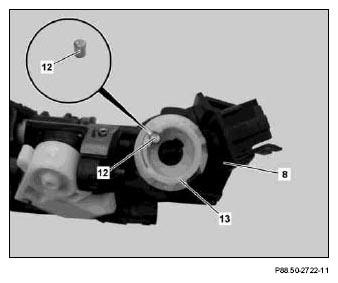

Fig 4: Identifying Pin, Mount And Trunk Lid Handle
Install selector drum (10) on trunk lid lock (8).
The hole (see arrow) should be located in the selector drum (10) above the pin (12).
Turn selector drum (10) counterclockwise to stop.

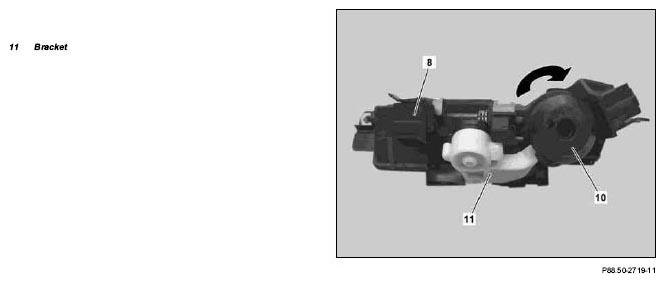

Fig 5: Locating Selector Drum Hole, Selector Drum, Pin & Trunk Lid Lock
Install trunk lid contact switch (S88/6) in trunk lid lock (8).
The socket on the trunk lid lock (8) as well as the trunk lid contact switch (S88/6) are coded mechanically and can only be installed in one position.

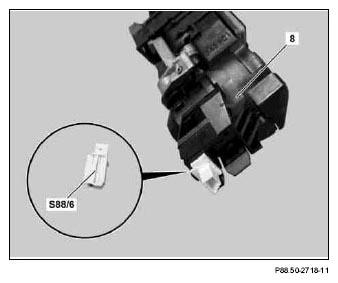

Fig 6: Identifying Trunk Lid Contact Switch And Trunk Lid Lock
