Wiper blade hits against A-pillar - AF82.30-P-1003BG

MODEL WDB203.7## 1# as of 471929 up to 473239

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	023841	Replace frame for windshield wiper system	016 WU /1.3 hrs	-	-

Damage code	Cause	Remedy
82 012 D1	The wrong intermediate linkage may be installed on the wiper motor (from model 203.0).	1 Remove/install/replace frame on windshield wiper system.
	As a result the wiper blade can hit against the A-pillar during wiper operation.	Intermediate linkage with 80.5 embossed is OK.

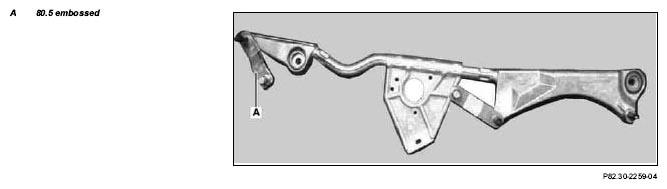

Fig 1: Identifying Intermediate Linkage With 80.5 Embossed

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 203 820 01 12	Frame on wiper motor	1
