Testing of electrical system for ME-SFI control module terminal 30 in ME-SFI ignition system - AD07.61-P-6001-01A

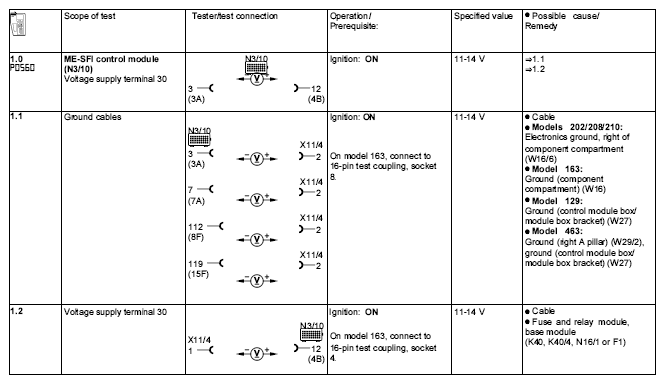

Fig 1: Testing Of Electrical System For ME-SFI Control Module Terminal 30 In ME-SFI Ignition System
G04736936
