Mixture Formation -- Self-Diagnostic System -- 203 Chassis - 2 Of 2
>>
Self-Diagnostic System
>>
O2 sensor signal upstream of TWC - check electronics - ME-SFI fuel injection system - AD07.61-P-6000-42A
O2 sensor signal upstream of TWC - check electronics - ME-SFI fuel injection system - AD07.61-P-6000-42A

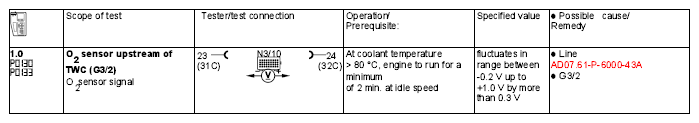

Fig 1: O2 Sensor Signal Upstream Of TWC - Check Electronics - ME-SFI Fuel Injection System
