Home >> Mercedes Benz >> 2006 >> C280 Base >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Mixture Formation -- Self-Diagnostic System -- 203 Chassis - 2 Of 2 >> Self-Diagnostic System >> Cruise control push-button switch - Check electronics - ME-SFI cruise control with variable speed limiter - AD07.61-P-6003-01C

Cruise control push-button switch - Check electronics - ME-SFI cruise control with variable speed limiter - AD07.61-P-6003-01C

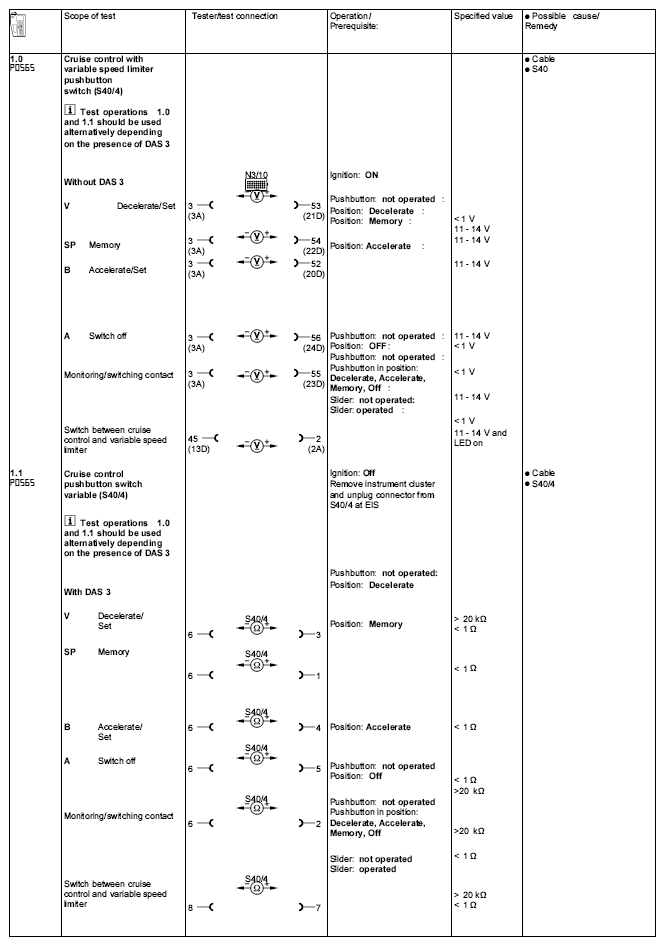

Fig 1: Cruise Control Push-button Switch - Check Electronics - ME-SFI Cruise Control With Variable Speed Limiter
G04736991
