Coolant temperature sensor - ME-SFI gasoline injection system - Testing electrical system - AD07.61-P-6000-08A

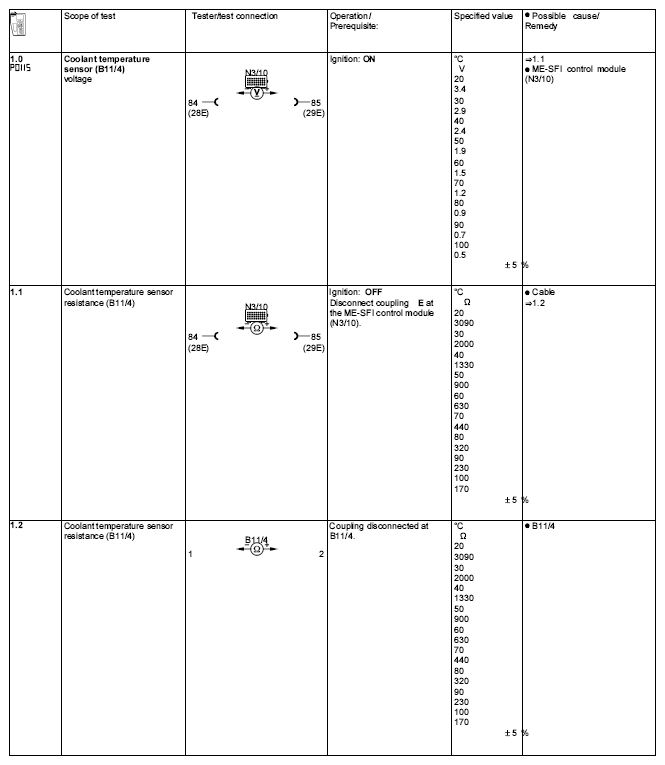

Fig 1: Coolant Temperature Sensor - ME-SFI Gasoline Injection System - Testing Electrical System
G04736883
