Connector assignment for ME-SFI gasoline injection and ignition system - AD07.61-P-2000-02A

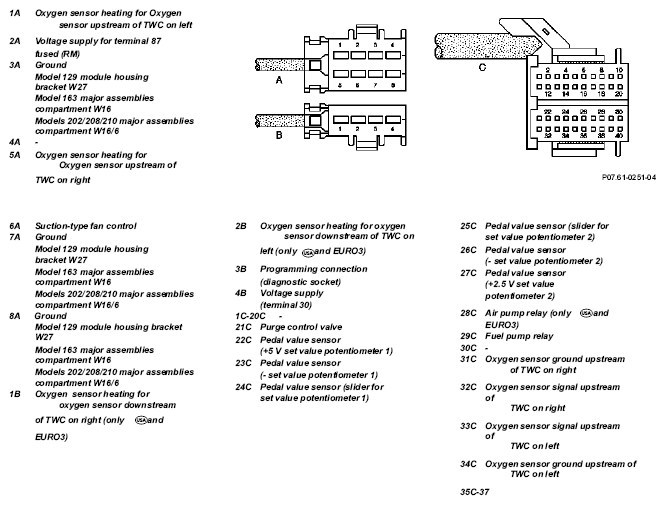

Fig 1: Connector Assignment For ME-SFI Gasoline Injection And Ignition System (1 Of 4)
G04738513

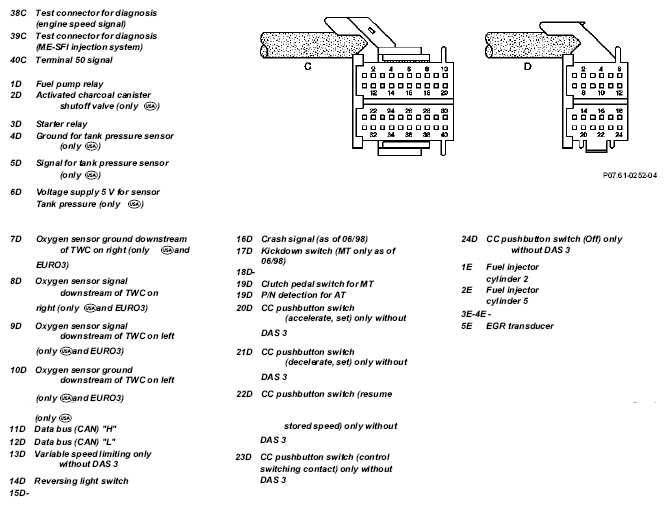

Fig 2: Connector Assignment For ME-SFI Gasoline Injection And Ignition System (2 Of 4)
G04738514

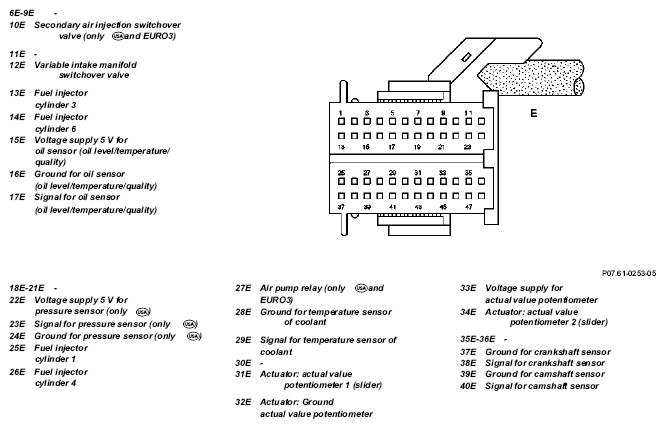

Fig 3: Connector Assignment For ME-SFI Gasoline Injection And Ignition System (3 Of 4)
G04738515

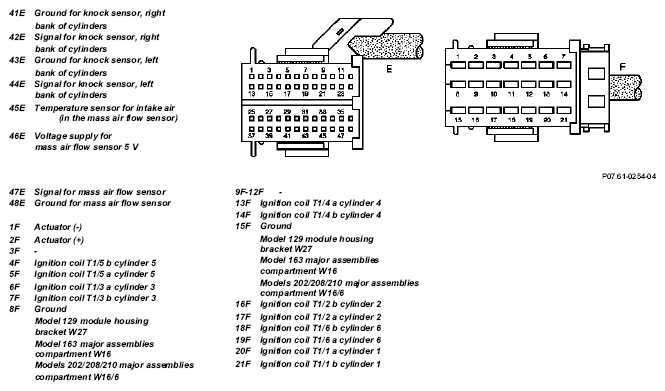

Fig 4: Connector Assignment For ME-SFI Gasoline Injection And Ignition System (4 Of 4)
G04738516
