Preparing inner C-pillar side wall - AR63.10-P-0700-02PB

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1001-02A Hole punching pliers, dia. 6 mm.
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
  1. Mark separation point and cut with body saw (area D).
  2. Punch 6 mm dia. holes (area L).

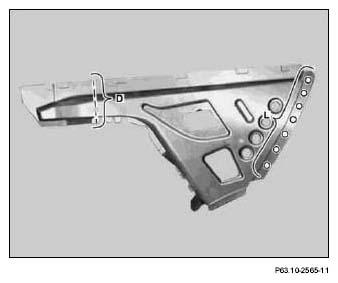

    Fig 1: Identifying Inner C-Pillar Side Wall Holes
    G04738661
  3. Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.

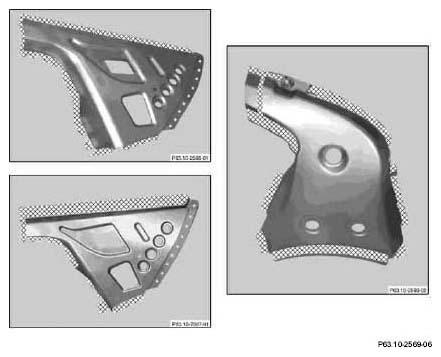

    Fig 2: Identifying Inner C-Pillar Side Wall Spot Welding Flange Grinding Area (1 Of 2)
    G04738662

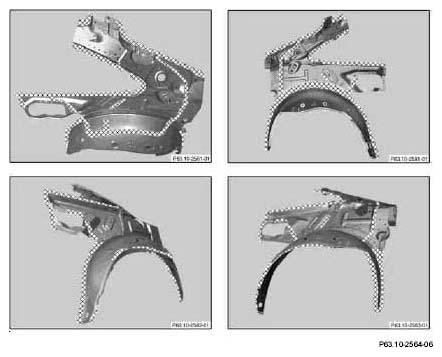

    Fig 3: Identifying Inner C-Pillar Side Wall Spot Welding Flange Grinding Area (2 Of 2)
    G04738663
