Retrofit hotel lock wiring harness. - AZ88.50-P-0003-02P

Fig 1: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Complete hotel lock wiring harness.

1. Install contact spring (1) at end of brown (br) line.

   The brown (br) line should have a length of 2300 mm and a line cross section of 0.5 mm²

2. Install contact spring (1) at both ends of yellow (ge) line.

   The yellow (ge) line should have a length of 2700 mm and a line cross section of 0.5 mm²

3. Install round terminal at other end of brown (br) line.

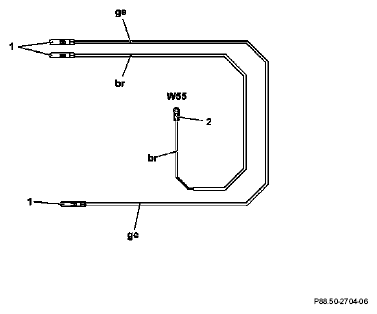

   Fig 2: Identifying Hotel Lock Wiring Harness Diagram (1 Of 3)


4. Install contact spring (1) of yellow (ge) line in chamber "2" of white, 2-pin connector (3).

   Connect other contact spring (1) of yellow (ge) line to rear SAM control module with fuse and relay module (N10/2) later.

5. Install contact spring (1) of brown (br) line in chamber "1" of white, 2-pin connector (3) and white 2-pin connector (3).

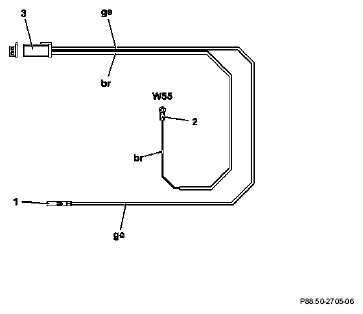

   Fig 3: Identifying Hotel Lock Wiring Harness Diagram (2 Of 3)


6. Tie yellow (ge) and brown (br) line together with insulating tape according to dimensions.

   The insulating tape should have a distance of at least 30 mm to the white, 2-pin connector (3).

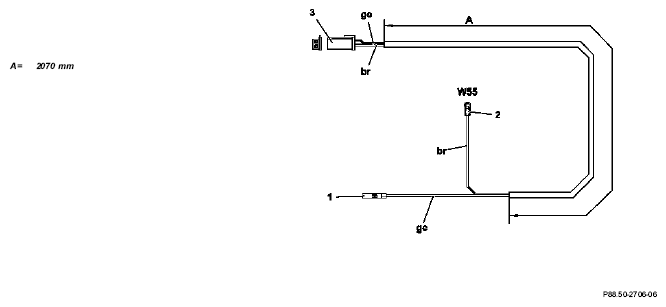

   Fig 4: Identifying Hotel Lock Wiring Harness Diagram (3 Of 3)


7. Fasten completed hotel lock wiring harness (4) with white, 2-pin connector (3) to vehicle wiring harness on trunk lid (5) according to dimensions (see arrow).

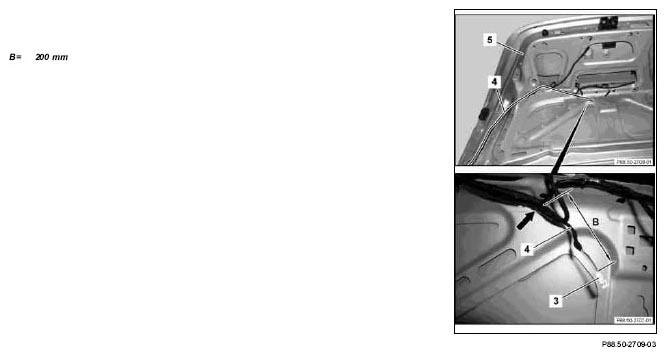

   Fig 5: Identifying White 2-Pin Connector, Vehicle Wiring Harness, Trunk Lid & Dimensions


8. Route hotel lock wiring harness (4) along vehicle wiring harness on trunk lid (5) in left trunk and fasten with cable strap.
   Fig 6: Identifying Hotel Lock Wiring Harness And Trunk Lid


9. Route hotel lock wiring harness (4) along vehicle wiring harness in trunk on left to rear SAM control module with fuse and relay module (N10/2) and fasten with cable strap.
10. Connect brown (br) line for hotel lock wiring harness (4) to Central ground (SAM/rear) (W55).

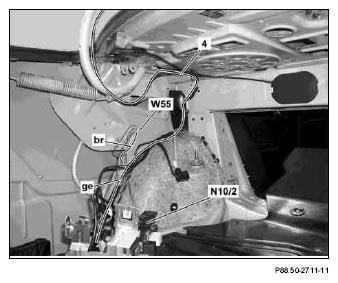

    Fig 7: Identifying SAM Control Module With Fuse And Relay Module, Central Ground & Hotel Lock Wiring Harness


11. Disconnect black, 28-pin connector (6) from socket "21" in rear SAM control module with fuse and relay module (N10/2).

    Socket "21" is marked (see arrow).

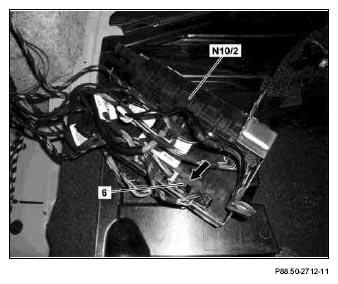

    Fig 8: Identifying Black 28-Pin Connector & Fuse & Relay Module


12. Remove contact carrier (7) from clutch housing (9).
13. Install yellow (ge) line for hotel lock wiring harness in chamber "18" of contact carrier (7).
14. Install contact carrier (7) in connector housing (9).
15. Tie back excess length of hotel lock wiring harness and yellow (ge) line to vehicle wiring harness with cable strap.

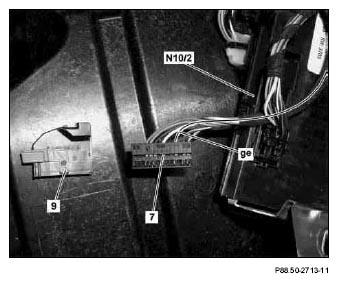

    Fig 9: Identifying SAM Control Module With Fuse And Relay Module, Contact Carrier & Connector Housing


16. Connect black, 28-pin connector (6) in socket "21" in rear SAM control module with fuse and relay module (N10/2).

    Socket "21" is marked (see arrow).

    Fig 10: Identifying Black 28-Pin Connector & Fuse & Relay Module


17. Connect white, 2-pin connector (3) for hotel lock wiring harness (4) to trunk lid contact switch (S88/6).

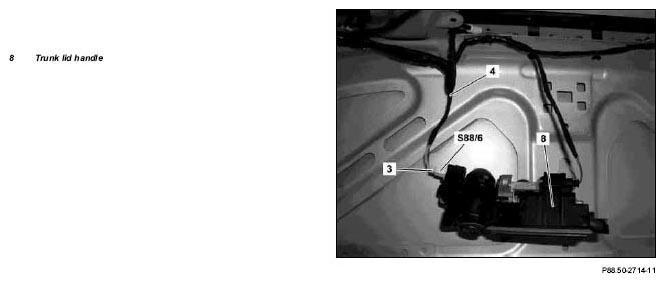

    Fig 11: Identifying Hotel Lock Wiring Harness, Trunk Lid Contact Switch, White 2-Pin Connector & Trunk Lid Handle
