Control unit for electronic selector lever module, task - GF27.19-P-5138-02P
TRANSMISSION 722.6 in MODEL 203 up to 23.04.04
Shown: Input signals of electronic selector lever module control unit
Shows model 203.061
The electronic selector lever module control unit (N15/5) receives digital and analog input signals, actuates various components or transmits information to various control units via the Controller Area Network bus class C (engine compartment) (CAN-C).
The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.
Input signals:
- Transmission mode switch (S16/5)
- Kick-down switch (S16/6) (up to 31.05.02)
- Touch shift module +/-(96)
- Voltage supply (circuit 87)
Input and output signals:
- Data link connector (X11/4)
Output signals:
- R/P locking solenoid (89)

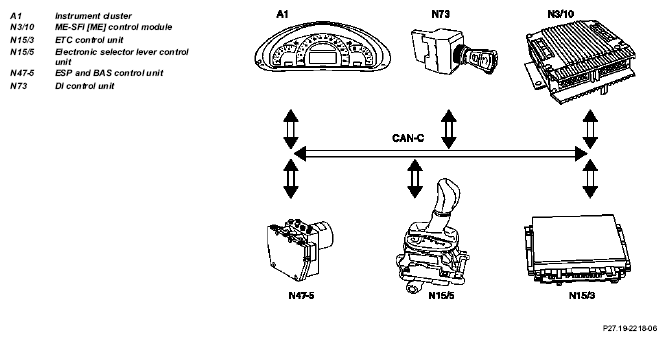

Via CAN-C there is a connection to the:
- Instrument cluster (A1)
- ME-SFI control unit (N3/10) or CDI control unit (N3/9)
- ETC control unit (N15/3)
- ESP and BAS control unit (N47-5)
- EIS [EZS] control unit (N73)
The following information is received via CAN-C.
ESP and BAS control unit (N47):
- Wheel speed and right rear direction of rotation
- Wheel speed and left rear direction of rotation
- Set braking torque
- Brake pedal depressed
Electronic ignition switch control unit (N73):
- Circuit 50 engine start switch (circuit 50)
- Circuit 15 voltage supply switched UB (battery voltage) (circuit 15)
- Stop lamp feedback
The following information is transmitted via CAN-C:
Instrument cluster (A1)
- Selector lever position for gear display (A1p12)
Motor electronics control unit (N3/10) or CDI control unit (N3/9):
- Selector lever position "P/N"
ETC [EGS] control unit (N15/3):
- Selector lever position
- Transmission mode switch (S16/5)
- Kick-down switch (S16/6) (up to 31.05.02)
- Touch shift module +/a
- P-locking magnet (89) energized
Electronic ignition switch control unit (N73):
- Selector lever position for actuation of backup lamp
