Remove/install front shock absorber - AR32.25-P-0105PW

MODELS 203.081 /084 /087 /092 /281 /284 /287 /292

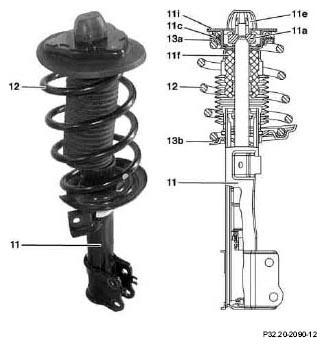

Fig 1: Identifying Front Shock Absorber Remove/Install Components - Models 203.081 /084 /087 /092 /281 /284 /287 /292

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove front spring strut (11)		AR32.25-P-1017PW
2	Disassemble suspension strut (11) and remove shock absorber		AR32.25-P-1018PW
3	Install in the reverse order
