Heating push-button control unit, location/task - GF83.20-P-2120PP

MODEL 203.0 /2 /7 up to 23.4.04 except CODE (580) Air conditioning (or Tempmatic for USA) except CODE (580) Automatic air conditioning except CODE (581) Automatic air conditioning except CODE (581) Comfort automatic air conditioning

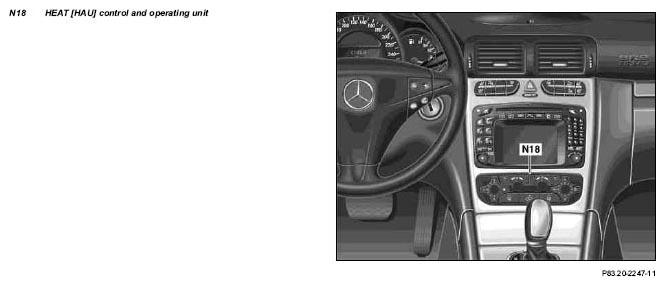

Fig 1: Identifying HEAT (HAU) Control And Operating Unit
G04737939
  Heating push-button control unit, location The HEAT control and operating unit (N18) is in the center console.
  Heating push-button control unit, task   GF83.20-P-2120-02PP
