Perform version coding subsequently - AN82.61-P-0001-05P

  1. Connect STAR diagnosis tester to data link connector (X11/4).
  2. Select the submenu "Information and communication"/"D2B COMAND or AUDIO" with function "Control modules" with STAR diagnosis.
  3. Menu: Select "Control module adaptation"/"Read coding and change if necessary"/"Version coding".
  4. Reenter all values on display.
    • Vehicle model to:

      =Standard (W) (with model 203.0)

      =Station wagon (S) (with model 203.2)

      =Coupe (C) (with model 203.7).

    • Model series = 203
    • Fader = ON
    • Enter steering version and interior equipment according to model.

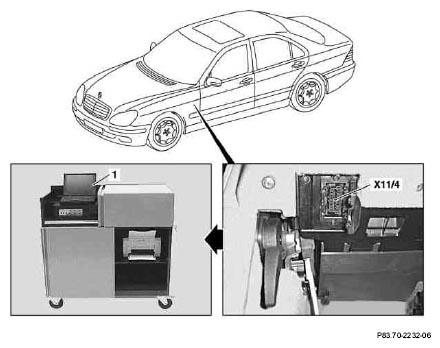

      Fig 1: Locating Data Link Connector
      G04735977
