Upper control panel control unit, design - GF54.21-P-4105-03PR

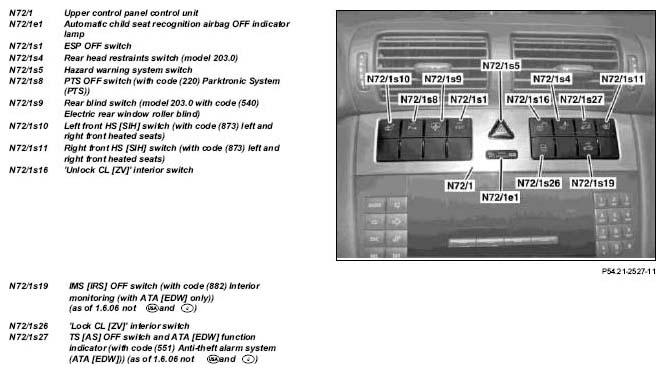

Fig 1: Upper Control Panel Control Unit Components

With and with code (551) Anti-theft alarm system (ATA [EDW]) the tow-away protection function is discontinued as of 1.6.06.

The TS [AS] OFF switch and ATA [EDW] function indicator (N72/1s27) is designed as a blind button. The ATA [EDW] function indicator remains fitted.
