Forward travel, function - GF54.65-P-4000PP
MODELS 203.0 /2 /7 with CODE (220a) Parktronic System (PTS)
Function prerequisites:
- Circuit 15 ON
- Vehicle speed ≤ 16 km/h
- "reverse gear engaged" signal is not applied
- Selector lever in position "D" (with transmission 722)

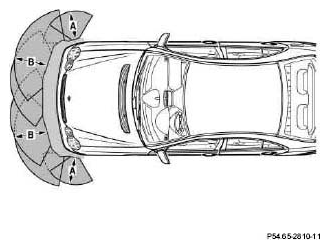

Monitoring range
When driving forwards only the area in front of the vehicle is monitored.
The front bumper PTS sensor unit detects obstacles:
- in area A (15 cm to 60 cm)
- in area B (20 cm to 100 cm)
Warning indicator
The Parktronic control unit actuates the center instrument panel PTS warning indicator. Depending on the distance to the obstacle, visual and, if necessary, acoustic warning information is given out.
The Parktronic system (PTS) can be switched off and on manually via the PTS OFF switch in the upper control panel control unit. The feedback is via a bright red LED in the PTS OFF switch.
| PTS switch, location/task | GF54.65-P-4101PP | ||
| Upper control panel control unit, location/task/design/function | GF54.21-P-4105PP | ||
| PTS control unit, location / task | GF54.65-P-4100PP | ||
| Sensors, location/task/function | GF54.65-P-4102PP | ||
| Warning display, location / task / design / function | PTS warning display, center of instrument panel | GF54.65-P-4104PP |
