Warning display, location / task / design / function - GF54.65-P-4104PQ
MODELS 203.0 /2 /7 with CODE (220a) Parktronic System (PTS)
Rear dome lamp PTS warning indicator
Shown on model 203.0 as of 24.4.04

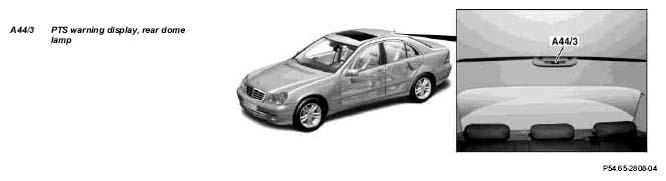

| Warning display, location | The rear dome lamp PTS warning indicator (A44/3) is located in the rear headliner. | ||
| Warning display, task | To display the distance to an obstacle in the rear monitoring range. When the minimum distance is not reached, expenditure of an acoustic signal. |
||
| Warning display, design | The rear dome lamp PTS warning indicator (A44/3) consists of 6 yellow and 2 red segments, the source of sound and the microprocessor, which implements the exchange of data with the Parktronic control unit. | ||
| Warning display, function | GF54.65-P-4104-01PP |
