PTS switch, location/task - GF54.65-P-4101PP
MODELS 203.0 /2 /7 with CODE (220a) Parktronic System (PTS)
Shown on model 203.0 as of 24.4.04

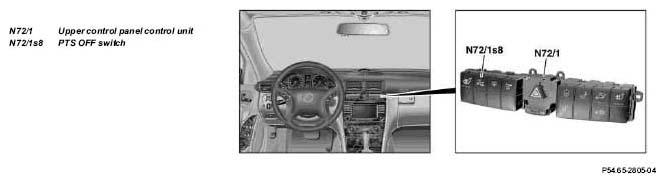

Fig 1: Identifying Upper Control Panel Control Unit And PTS Off Switch - Shown On Model 203.0 As Of 24.4.04
| PTS switch, location | The PTS OFF switch (N72/1s8) is located in the upper control panel control unit (N72/1). | ||
| PTS switch, task | Manual switching on and off and display of status of the Parktronic system (PTS) with a light-emitting diode in the PTS OFF switch (N72/1s8). |
